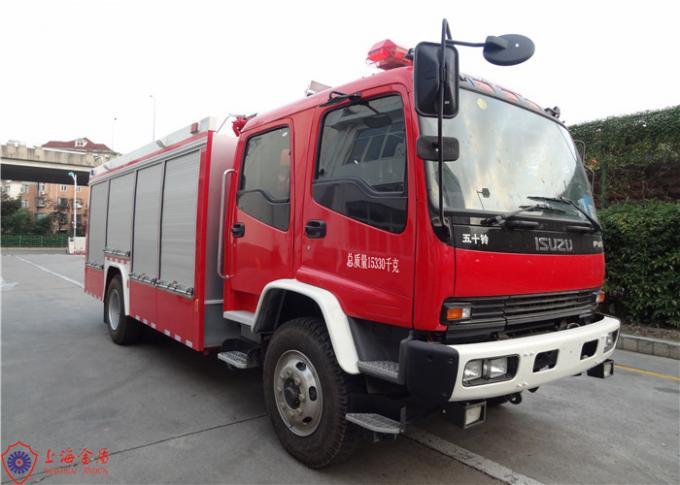

JDX5100GXFPM35/B foam fire truck adopts QL11009KARY ISUZU chassis, USA HALE AP32 fire pump, USA AKRON 3430 fire monitor and other fire-fighting equipment. The vehicle has the features of a good structure and reasonable layout, easy operation and maintenance. It is usually used by public security fire brigades in large and medium cities, petrochemical companies and airports and other professional fire brigade.
1. Main performance parameters:
| The whole vehicle | ?? |
| Dimensions | 6870X2240X3040 mm |
| Full load permissible weight | 10000 Kg |
| Vehicle total weight | 6125 kg |
| Fire-extinguishing agents | water + Foam: 3500kg |
| Number of passengers | 5,include driver |
| Max. Power | 139kw/189hp |
| Chssis | ?? |
| Brand | ISUZU chassis |
| Model | QL11009KARY |
| Drive Type | 4×2 |
| Cab | double cabin (1 + 1 + 3), the rear seat backrests fit with three fixtures for putting Self Contained Breathing Apparatus. |
| Wheelbase | 3815mm |
| Chassis weight | 2970Kg |
| Max. permissible load | 7030Kg |
| Maximum speed | 110Km/h |
| Min. turning diameter | ??15.2m |
| Engine | Inline four-cylinder, water-cooled, electronically controlled two-stage, high-pressure common-rail, turbocharged, intercooled, diesel engine electronic control |
| Type | 4HK1-TCG40 |
| Max. power | 139Kw/ 2600r/min |
| Max. torque | 510N.M/1600rpm |
| Emission standard | China ?? |
| Clutch | Single, dry, diaphragm spring, oil and gas booster |
| Gearbox | MLD-6Q |
Fire Pump
- Manufacturer: USA HALE Company
- Mode: AP32
- Pressure/flow rate: 1.0MPa 32L/s
- Foam proportioner (control panel picture on the right):
- Manufacturer: USA W.S. Darley Co.
- Model: FSB60-C
- Type: Automatic foam proportioner
- Foam proportion: 0.5%-6%
- Foam liquid flow rate: 5.5-227(L/min)
Extinguishing system
1. Water inlet: A Φ100mm suction connection, at the rear of vehicle body. An inlet with Φ100mm manual butterfly connects with the water tank
2. Water injection: a Φ80mm tank water injection inlet at each side of vehicle body.
3. A pump with a DN40 manual ball valve behind the tank connects with water tank injection inlet.
4. Water outlet: A outlet with Φ80mm ball valve on each side of pump station. And a DN80 cannon pipe
5.Residual water drainage pipeline: To protect the pump and each ball valve, mounted with residual water drainage valve.
6. Cooling water pipeline: to protect normal operation of the PTO, the pipeline is mounted with additional cooling devices.
FAQ:
1. Q:Are you a factory or a trade company?
A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.
2. Q:Where is your factory located?
A:We are located in Shanghai Province,China.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
Any other questions, please do not hesitate to contact with us.
