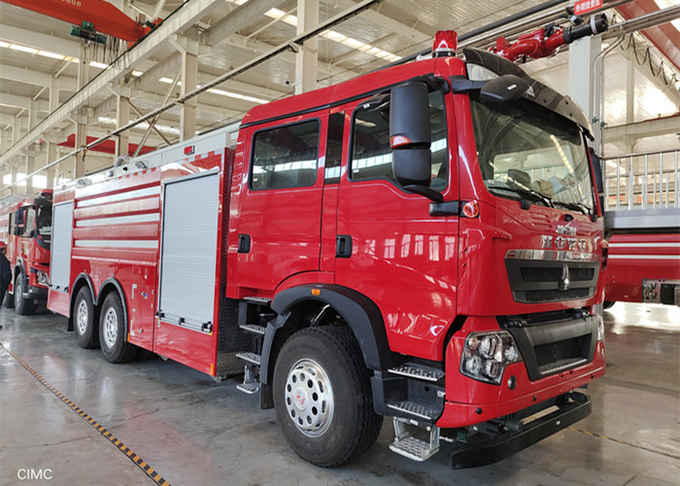

Piston Primer Pump 60L/S Flow Water And Foam Fire Trucks 20490Kg Max Load

Product Details:

Wheelbase
4600mm
Diversion Time
??35s
Seat (inc. Driver)
6
Pressure
1.0Mpa
Drive Type
4×2
Max. Speed
90Km/h
Water Capacity
7600L
Foam Capacity
400L
Product Name
Water And Foam Combine Fire Truck
Place of Origin
shanghai China
Brand Name
CIMC
Certification
ISO9001,CCC
Model Number
PM80
Minimum Order Quantity
1 unit
Price
Negotiable
Packaging Details
Exporting standard package or customized packing
Delivery Time
180days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
350 units/year

Piston Primer Pump 1.0MPa 60L/S Flow Water And Foam Fire Trucks 20490Kg Max Load

Pump drive system

Model	YTQ600F sandwich type
Manufacturer	YANGZHONG
Transmission shaft	High balance precision

Fire monitor

Model	PS50
Flow	3000L/min
Pressure	10bar
Range	water≥65m
Rotation angle	Level 360° Pitching —15°~ +90°

Liquid tank

Capacity	Water: 7600kg
Material	Qualitative carbon steel
Structure	Total side girder
Device	1 ingate 1 overflow device 1 liquid level sensor 1 DN40 drain outlet with valve 4 DN80 filling pipe end Conform to rule GA39.4-92

Pipeline

Outlet pipeline	4×DN80 ordinary pressure outlet 1×DN50 ball valve
Suction inlet	1×DN150 outside inlet 1×DN150 valve
Monitor pipeline	1×DN100 monitor pipeline 1×DN100 butterfly valve
Residual water outlet	Water cock
Cooling water pipeline	The PTO equipped with a cooling water pipeline connected with the in-outlet pipeline.

Side girder

Features: made of welding high quality profiled steels, two longitudinal beams through a plurality of beam intensity bearing joint of high strength bolt connection. The side beam is installed, use girder structure, to ensure that the original car beam of uniform stress, improve the service life of the girder, and reduce deformation caused by components twisted.
