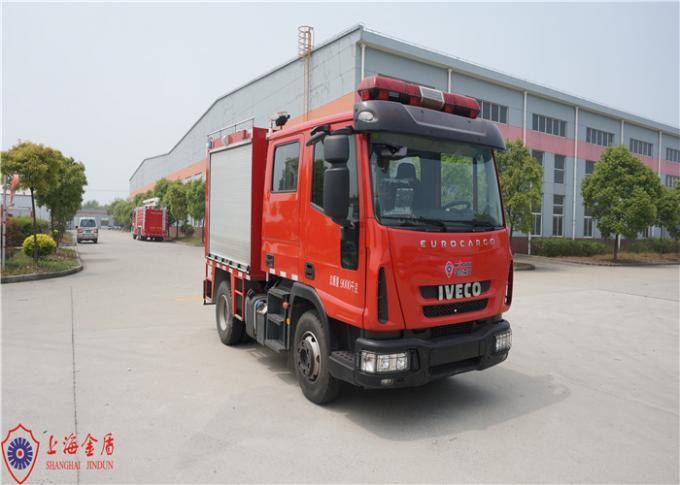

Vehicle basic data
| Item | Unit | Value |
| Dimension (L×W×H) | mm | 5270×2200×2980 |
| Gross weight | kg | 7800 |
| Wheel base | mm | 2790 |
| Water tank capacity | L | 2200 |
| Foam tank capacity | L | 500 |
| Max. engine power | Kw/Hp | 160(217hp) |
| Emission standard | ?? | China V |
| Max. speed | Km/h | 110 |
| Seat (inc. driver) | ?? | 2+3 |
| Approach angle | ° | 18 |
| Departure angle | ° | 30 |
| Fire pump flow | Mpa, L/s | 32L/s at 1.0MPa |
Fire pump
| Manufacturer | HALE |
| Model | AP32 |
| Water flow | 1.0MPa 32L/s |
| Max. suction depth | 7m |
| Priming time | ≤35s |
Fire fighting system
- Suction inlet : 1×DN100 butterfly valve, electric and manual operation
- Outside Suction inlet : 1×DN125 suction coupling with stainless steel butterfly valve and lid cover, snap- type
- Outlet : 2×DN80 ordinary outlet with manual ball value, insertion-type
- Pump outlet : 10mm stainless steel ball valve, manual
- Outside liquid inlet : Use G1 1/2’’ manual ball valve and KY40 solenoglyphic tooth coupling
Electrical system
The main lights in the cab at the top of the long row of lights, public address system with Wail-Yelp alarm whistle, including microphone and 100W loudspeaker. 2 Red and blue alarm lamp on both side. A 70w searchlight is set on the roof of the vehicle.
Painting
Red paint: cab, body (shutter doors, except decorative strip)
Onboard document
- Vehicle operation and maintenance manual
- Chassis operating manual
- Chassis operation and maintenance manual
- Chassis quality warranty card
?
FAQ:
1. Q:Are you a factory or a trade company?
A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.
2. Q:Where is your factory located?
A:We are located in Shanghai Province,China.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
Any other questions, please do not hesitate to contact with us.
