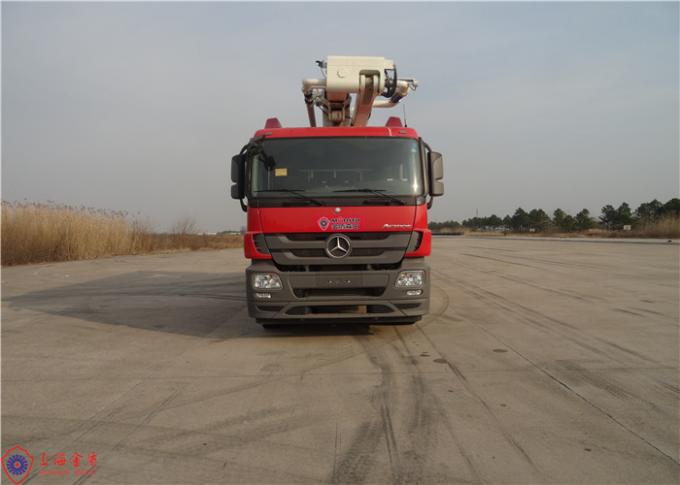

JDX5310JXFJP32 fire truck is a combination of water, foam, high jet three functions in a new class of high-lift truck. It is a domestic advanced level of multi-purpose fire fighting vehicles. The car is used electro-hydraulic proportional and off centrally control technology with fully hydraulic drive, three telescopic + folding side arranged a fire truck.
The whole vehicle
| Full authorized total mass | 31000 kg |
| Vehicles curb weight | 23800 kg |
| 人員 数量 | 2 + 4,including the driver |
| 最大出力 | 320/435 Kw/hp |
シャーシ
| 製造者 | メルセデス・ベンツ |
| モデル | Mercedes Actros3344 |
| 駆動方式 | 6 × 4 |
| キャブ | modified Crew (1 + 1 + 4),Rear rack installation four SCBA |
| Wheelbase | 4500 + 1350 mm |
| Chassis weight | 9230Kg |
| 最大許容荷重 | 23700Kg |
| 最高速度 | 104Km / h |
| エンジン | V-type 6-cylinder turbocharged and intercooled diesel engine |
| モデル | Mercedes-Benz OM501 LA |
| Maximum engine power | 320Kw / 1800r / min |
| 最大トルク | 2100N.M / 1080rpm |
| 排出基準 | Euro IV |
| クラッチ | monolithic, dry type |
| トランスミッション | Mercedes-Benz G240-16, fully synchronized gearbox. |
Fire systems
Fire performance parameters
Water / foam range: ≥65 / 60m
Foam mixer ratio: 6% (manual adjustment)
solution tank
Manufacturing: Shanghai Jindun Special Vehicle Equipment Co., Ltd.
Capacity: Water: 4800Kg Foam: 1900Kg
Material: 304 stainless steel tank, stainless steel top plate 304 patterns;
Structure: damping rubber flexible support, which consists of longitudinal and transverse anti-swing plate is mounted on the sub-frame;
Equipment: 2 individual openings with quick-locking and opening device;
2 level indicator;
2 outfalls, with stainless steel or brass ball valves;
Within a water inlet;
Four external water inlets;
FAQ
1. Q: Why should we choose you ?
A: a. We are professional manufacture located in Shanghai city for firefighting trucks products which nearby Pudong International Airport, is easily for customer coming and visiting.
b. We can export directly to overseas customer, no need to deal with trading company and the second price increase will not occur.
c. We have our own R&D team, production workshop, QC management team,international marketing team and after service team.
2. Q:What's the delivery time?
A: a. 20 days delivery upon receipt of advance deposit if we have ready in stock for normal standard model.
b. ISUZU & Chinese brand chassis 3 months upon receipt of advance deposit.
c. European brand chassis 9 months upon receipt of advance deposit.
3. Q: お支払い方法は何ですか？
A: T/TとL/Cが好まれます。.
4. Q: 車両の出荷を手配しますか？
A:はい、貿易条件に基づいて出荷を手配できます。.
5. Q: 梱包はどうなっていますか？
A:すべての梱包は輸出基準に準拠しています。.
他に質問がある場合は、お気軽にお問い合わせください。.
