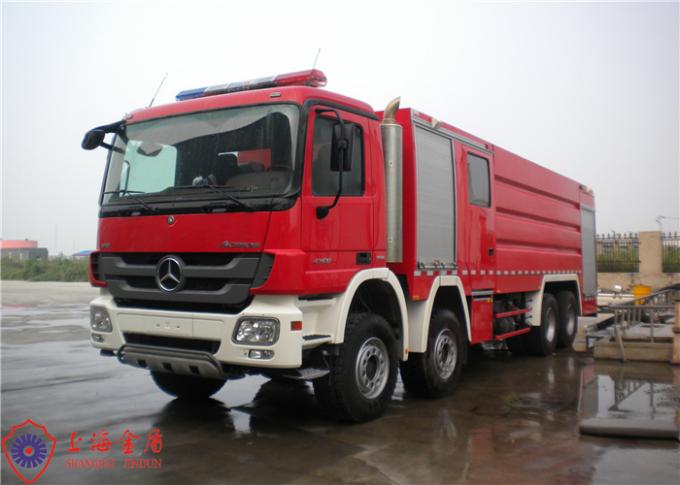

PM180 Foam fire truck is adapted from Mercedes Benz Actros 4160 chassis with rotable type cab. The vehicle equipped with 440kw engine, Imported fire pump and fire monitor. and it could load 6 passengers include driver.
車両
| 寸法 (L×W×H) | 11310×2500×3630mm |
| 総重量 | 38650kg |
| 完全車両輸送質量 | 20600kg |
| シート（運転手を含む） | 6 |
| Max. power | 440kw |
シャーシ
| 製造者 | ダイムラー |
| モデル | Actros4160 |
| Drive type | 8×4 |
| キャブ | Rotatable type |
| Wheelbase | 1700+4300+1350mm |
| Max. speed | 95km/h |
| 最小旋回直径 | ≥26m |
| アプローチアングル | 23° |
| デパーチャーアングル | 11° |
| Tyre | Forward: 4x 385/65R22.5 Rear: 8x 315/80R22.5 |
| エンジン type | Inline eight-cylinder, four-stroke, water-cooling, electronic direct injection diesel engine |
| モデル | OM502LA.IV/3 |
| Max. power | 440kw |
| Max. torque | 2800N•m |
| 排出基準 | China IV/Euro IV |
| クラッチ | モノリシック、ドライ |
| Gearbox モデル | マニュアル、16速前進ギア |
キャブ
| Structure | Rotatable type |
| シート | 1+1+4 |
| Equipment | Except the original equipments. There is a storage box with cover under the seat, embedded air breathing apparatus fixed mount in the seats |
電気システム
The main lights in the cab at the top of the long row of lights, configure the 100W alarm control system; a strobe lights installed on both sides and the middle of each compartment (two red and blue).
FAQ
1. Q: Why should we choose you ?
A: a. We are professional manufacture located in Shanghai city for firefighting trucks products which nearby Pudong International Airport, is easily for customer coming and visiting.
b. We can export directly to overseas customer, no need to deal with trading company and the second price increase will not occur.
c. We have our own R&D team, production workshop, QC management team,international marketing team and after service team.
2. Q:What's the delivery time?
A: a. 20 days delivery upon receipt of advance deposit if we have ready in stock for normal standard model.
b. ISUZU & Chinese brand chassis 3 months upon receipt of advance deposit.
c. European brand chassis 9 months upon receipt of advance deposit.
3. Q: お支払い方法は何ですか？
A: T/TとL/Cが好まれます。.
4. Q: 車両の出荷を手配しますか？
A:はい、貿易条件に基づいて出荷を手配できます。.
5. Q: 梱包はどうなっていますか？
A:すべての梱包は輸出基準に準拠しています。.
他に質問がある場合は、お気軽にお問い合わせください。.
