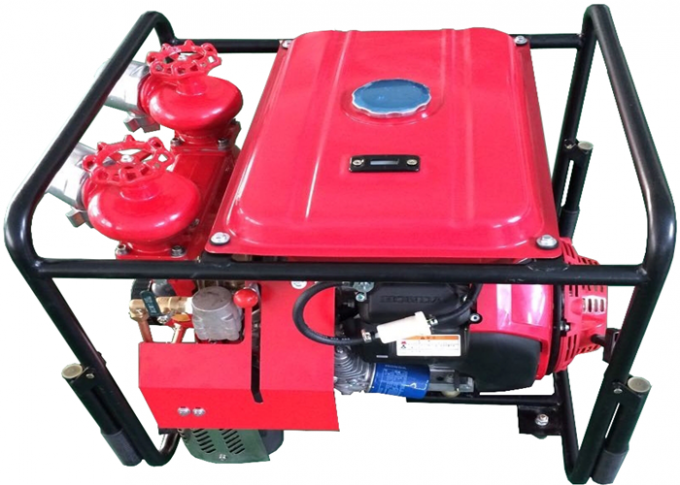

Four stroke Double cylinder High pressure middle flow Portable fire pump Highest lift 145m
| エンジン | 型 | Four stroke 6134 (United States original power) |
| Number of cylinders | Double cylinder | |
| Cylinder diameter * stroke (mm) | 88*86.5mm(993cc) | |
| output power | 33.8kW (46PS) | |
| 燃料タイプ | 92# or more unleaded gasoline | |
| 燃料タンク容量 | 15L | |
| Fuel consumption | 9L/H | |
| Fuel System | Solenoid valve type – carburetor – manual choke | |
| Lubrication system | Forced lubrication | |
| cooling system | Forced air cooling + water cooling (dual cooling system to ensure stable operation of equipment) | |
| Oil injection volume | 1.8L | |
| Ignition mode | Transistor electronic ignition | |
| 起動モード | Electric start (optional remote start) | |
| water uptake | Water diversion mode | Rotary vane vacuum pump (automatic water diversion, no need to handle handle) |
| 最大吸引深さ | 9M | |
| 水分岐時間 | ≤20S | |
| Pumping | Pump type | One-way two-stage centrifugal pump |
| Suction port diameter | 3 inch(80mm) | |
| Outlet diameter | 2.5inch(65mm) | |
| Number of outlets | 1(Optional dual outlet) | |
| Type of outlet valve | Ball valve | |
| performance | Highest lift | 145m |
| 定格流量 | 950L/min | |
| 定格圧力 | 1.0Mpa | |
| overall | weight | 92KG |
| Size (mm) | 780*590*780 |
