車両
| 寸法 (L×W×H) | 6705×2200×3210mm |
| 総重量 | 8150kg |
| 完全車両輸送質量 | 3925kg |
| Electric generator rated power | 50kw |
| シート（運転手を含む） | 3 |
| 定格出力 | 139kw |
シャーシ
| 製造者 | いすゞ |
| モデル | QL11009KARY |
| Drive type | 4×2 |
| キャブ | Original X-P301 |
| Wheelbase | 3815mm |
| Max. speed | 95km/h |
| 最小旋回直径 | ??15 |
| エンジン type | In-line four-cylinder, high pressure common rail, water inter-cooling |
| モデル | 4HK1-TCG40 |
| Max. power | 139kw |
| Max. torque | 510N•m |
| 排出基準 | China IV |
| クラッチ | Diaphragm spring, monolithic, dry, hydraulic power assisted |
| Gearbox モデル | Manual, 6 forward gear |

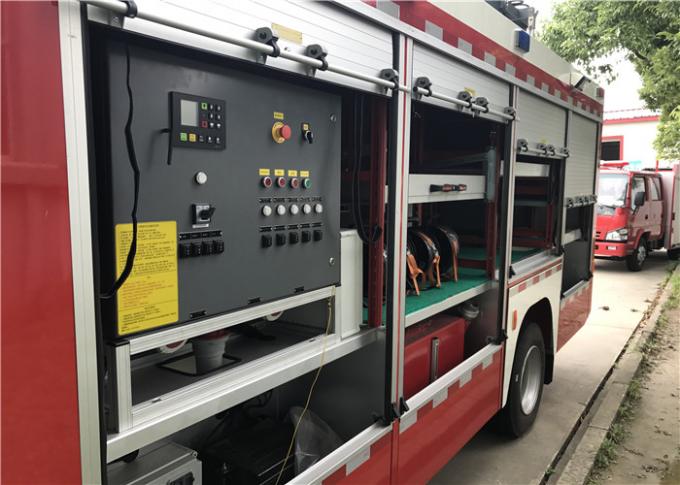

Mobile illumination equipment
| 出力 | 2x500w |
| Voltage | 220VAC |
| その他 | Traversing carriage |
| Qty | 2 sets |
Hand-held accent light
| Light source | LED |
| 出力 | ≥ 9 W |
| Service time | ≥8 h |
| Qty | 2 sets |
Auxiliary lighting
2x halogen lamp
Power: 2×1500 W
Voltage: 220VAC
Air compressor
Model: QW-400
Type: maintenance-free mute oilless air compressor
Power: 2.5 kW
Flow: 260 L/min
Air supply manage: oil-water separator pressure regulating valve
FAQ
1. Q: Why should we choose you ?
A: a. We are professional manufacture located in Shanghai city for firefighting trucks products which nearby Pudong International Airport, is easily for customer coming and visiting.
b. We can export directly to overseas customer, no need to deal with trading company and the second price increase will not occur.
c. We have our own R&D team, production workshop, QC management team,international marketing team and after service team.
2. Q:What's the delivery time?
A: a. 20 days delivery upon receipt of advance deposit if we have ready in stock for normal standard model.
b. ISUZU & Chinese brand chassis 3 months upon receipt of advance deposit.
c. European brand chassis 9 months upon receipt of advance deposit.
3. Q: お支払い方法は何ですか？
A: T/TとL/Cが好まれます。.
4. Q: 車両の出荷を手配しますか？
A:はい、貿易条件に基づいて出荷を手配できます。.
5. Q: 梱包はどうなっていますか？
A:すべての梱包は輸出基準に準拠しています。.
他に質問がある場合は、お気軽にお問い合わせください。.
