5818Kg Chassis Net Weight Aerial Ladder Fire Truck Double Row Cab 60m Spray Range
| 엔진 | 6 cylinder Straight line turbocharged diesel engine with electronically controlled common rail injection | |
| Pump: 80 liters/sec | MAN D0836LFLAL | |
| 최대 출력 | 213Kw/ 2300r/min | |
| 최대 토크 | 1150N.M/1200~1750rpm | |
| 기어박스 | ZF/9S-1310 OD | |
PTO Second PTO | ZF 109/10b ZF NL/4C | |

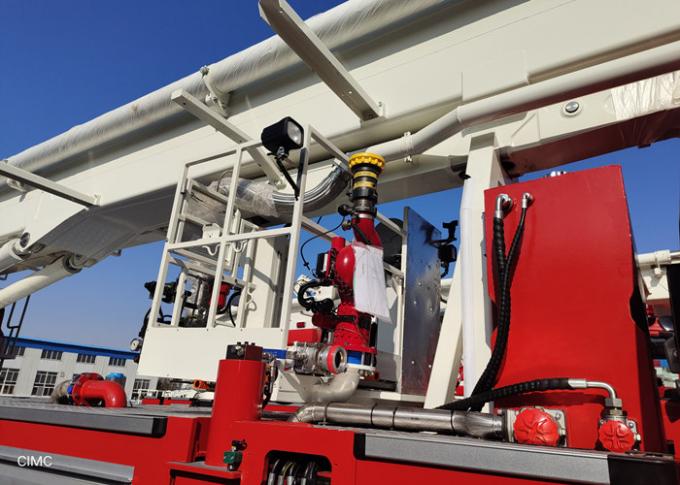

| Boom | Boom frame is composed of the main boom + four section telescopic boom + a small boom, using HG70 high strength steel welded | |
| Combined boom working angle | ??10°??80° | |
| Telescopic boom working angle | 0°??30° | |
| Small boom working angle | 0°??90° | |
| Boom rotation angle | 360°continuous | |
| Pump | 정격 유량 | 60L/[email protected] |
| Boom operation time | ≤120s | |
| Outrigger operation time | ≤30s | |
| 유압 시스템 압력 | 21MPa | |
| Max. air speed | 12.5m/s | |
| Outrigger span | 4200/4900~5130mm | |
Fire fighting performance
| Spray range | ≥60m |
파이프라인
| 배출 파이프라인 | 4×DN80 볼 밸브 커플링 |
| 흡입 입구 | 1×DN125 snap-type outside suction pipeline with lid cover |
| 급수 | 2×DN80 ball valve outside water supply coupling |
| Working platform water outlet | 1×DN65 butterfly valve |
Onboard documents
- Vehicle operation and maintenance manual
- Chassis operating manual
- Chassis operation and maintenance manual
- Chassis quality warranty card
- Chassis certificate, vehicle certificate, 3C logo
- Engine code copy
- Chassis code copy
- Onboard equipment list
- Follow-up service card
- Hand-over list
