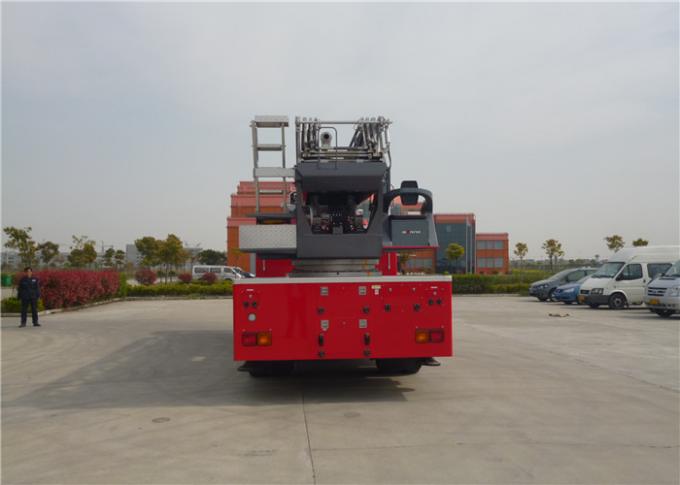

Four Doors ISUZU Chassis 4×2 Drive Aerial Ladder Truck 30 Meters Working Height Six Seats
| Шасси | Производитель | Isuzu |
| Модель | QL11609QFRY | |
| Привод | 4×2 | |
| Overall | 8785mmX2465mmX2780mm | |
| Колесная база | 5550mm | |
| Полная масса | 16000kg | |
| Chassis net weight | 4750kg | |
| Двигатель | Модель | 4HK1-TCG40 |
| Type | Inline four-cylinder, water-cooled, electric control high pressure common rail diesel engine | |
| Displacement | 5193ml | |
| Power | 138Kw@2600rpm | |
| Крутящий момент | 510Nm@1600rpm | |
| Emission standard | Китай IV | |
| Коробка передач | 5-speed manual gear box | |
| Топливный бак | 200L | |
| Кабина | Структура | Four-door |
| Место | 6 |
| Гидравлическая система | ||
| Drive system | Модель | PT058/PQ3-D |
| Передаточное отношение | 1.15 | |
| Макс. крутящий момент | 350Nm | |
| Main hydraulic pump | Модель | K3VL112/B-1NLHM-L1-TB007 |
| Max. pressure | 35Mpa | |
Shanghai Jindun Special Vehicle Equipment Co., Ltd. introducesladder technology from Japan Morita Corporation, and combines with our own fire truck development capabilities, which developed YT32 / BG type ladder truck with independent intellectual property rights. This product combines high rescue and low fire fighting functions, which is a new generation of fire truck products.
Часто задаваемые вопросы
1. Q: Why should we choose you ?
A: a. We are professional manufacture located in Shanghai city for firefighting trucks products which nearby Pudong International Airport, is easily for customer coming and visiting.
b. We can export directly to overseas customer, no need to deal with trading company and the second price increase will not occur.
c. We have our own R&D team, production workshop, QC management team,international marketing team and after service team.
2. Q:What's the delivery time?
A: a. 20 days delivery upon receipt of advance deposit if we have ready in stock for normal standard model.
b. ISUZU & Chinese brand chassis 3 months upon receipt of advance deposit.
c. European brand chassis 9 months upon receipt of advance deposit.
3. В: Какой у вас способ оплаты?
О: Предпочтительные способы - T/T и L/C.
4. В: Вы организуете доставку автомобилей?
О: Да, мы можем организовать доставку в зависимости от условий торговли.
5. В: Как упакованы товары?
О: Вся упаковка соответствует стандартам экспорта.
Если у вас есть другие вопросы, пожалуйста, не стесняйтесь обращаться к нам.
