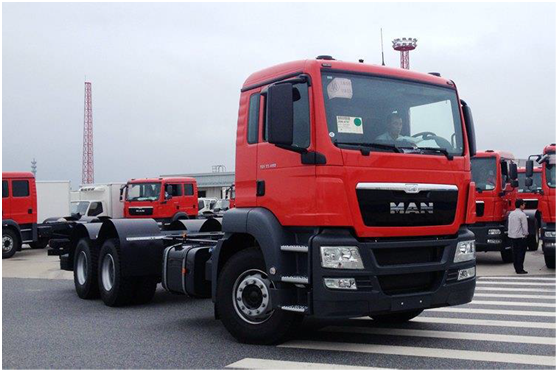

The vehicle adopts the latest TGS 33.4806X4BB national V chassis produced by German manufacturer, and carries a TCD2015 V8 turbocharged diesel engine manufactured by original imported Dowitz Company.
The product has a wide range of applications:
(1) large-scale cleaning operations;
(2) large-flow air supply and smoke exhaust;
(3) super-large air volume, super-high air pressure, effectively changing the direction of fire wind;
(4) providing large-scale cooling and dust removal in the fire field. It provides a strong guarantee for "extinguishing fires and rescuing catastrophes".
Main specifications
Model: TGS 33.480 6X4 BB
CCC model: TGS 33.480
Drive type: 6×4
Drive cab: MAN TGS L Cab
Wheelbase (mm): 5,100+1400
Rear suspension (mm): 2,750
Maximum engine power: 353 kW/480 HP (G5)
Load capacity
| Пункты | Values | Remarks |
| Chassis weight | 9,593 kg | 4996+4597, this data is for reference only |
| Maximum allowable load | 23,407 kg | wheelbase 5,100 mm |
| Front axle allowable load | 7,500 kg | 7000 KG for record |
| Rear axle allowable load | 26000KG | 2×13, 000 kg |
| Vehicle allowable total weight | 33,000 kg | ?? |
Производительность
Maximum Speed: 108 km/h (Electronic Speed Limiter 89 km/h)
Minimum turning diameter: 21.7M
Minimum ground clearance: 254 mm (front); 305 mm (back)
Кабина
TGS L cab (narrow body, standard roof), 2,240 mm wide, 2,280 mm deep, fire-fighting red, high comfortable air spring main driver seat, front single and vice-driver seat, back berth. Qiz billion storage space, automatic temperature control environmental air conditioning system (R134A refrigerant, no Freon), vehicle multimedia (color screen + USB interface), central control door lock, two side electric windows, two side electric thermal rearview mirror, two side electric thermal wide-angle mirror, right electric thermal rearview mirror, right front view mirror, etc.
