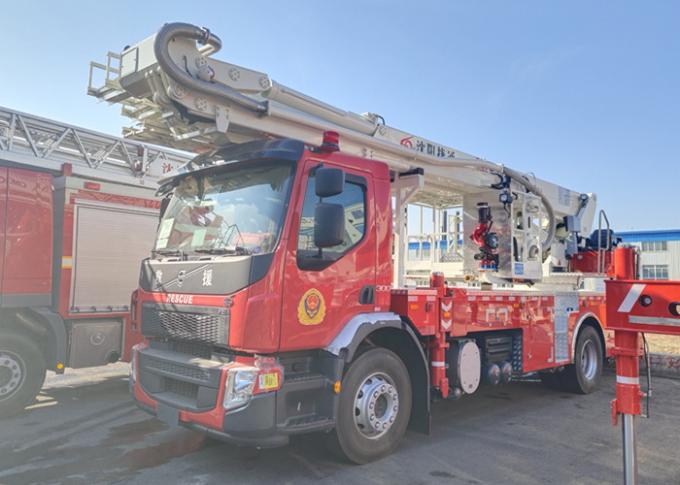

250kw 32 Meters Aerial Ladder Fire Truck with 3500L Liquid Tank 6×4 Drive
Product advantages
The most advanced hydraulic pilot and electro-hydraulic proportional control system are adopted to make the arm frame move more stable and more safe and reliable.
1. The use of variable displacement pump ensures the stability of hydraulic system. In the operation of boom, the hydraulic oil pump can automatically determine the oil supply quantity according to the amount of oil required by the boom operation. In this way, the oil temperature of hydraulic system is not only prevented, but also the stability of the boom operation is guaranteed.
ยานพาหนะ
1.1 Maximum working height (m): 32
1.2 Maximum working radius (m): 16
1.3 Maximum bearing weight of working bucket (kg): 400
1.4 Liquid carrying capacity (water / foam) (L): 2000/1500
1.5 Engine power (kw): 250
1.6 Overall dimension: length × width × height (mm) 10800 × 2500 × 3850mm
แชสซี
2.1 Model: Beiben 2534 (to be determined)
2.2 Driving mode: 6 × 4
2.3 Wheelbase (mm) (full load): 4800 + 1450
(to be determined)
2.4 Exhaust emission: National Three
Engine:
2.5.1 Type: in line, water cooled, supercharged, intercooled, six cylinder
2.5.2 Cylinder diameter × stroke: 126 × 130
2.5.3 Displacement (L) 9.726
2.5.4 rated power (kW / RPM): 250 / 2200
2.5.5 Maximum torque (nm / RPM): 1350 / 1200 ~ 1600
2.5.6 Fuel consumption (g / kW. H): 210
2.5.7 Tropical thermostat 76 ??, silicone oil clutch fan
Steering gear
2.8.1 Model: right ZF8098
2.8.2 Form: hydraulic power
Main technical parameters of upper part:
| Outrigger | Structural style | H type | |
| Longitudinal span | 7250mm | ||
| Horizontal span | 5800mm | ||
| Outrigger leveling method | Automatic leveling | ||
| Boom (ladder) frame form | Three-section synchronous telescopic boom + folding boom | ||
| Boom luffing angle | Telescopic arm 87° Folding arm and telescopic arm 0°—175° | ||
| Rotation range | 360°Full rotation | ||
| Outrigger extension time | ≤50s | ||
| The boom rises to the rated height and rotates for 90° time | ≤150s | ||
FAQ
1. Q: Why should we choose you ?
A: a. We are professional manufacture located in Shanghai city for firefighting trucks products which nearby Pudong International Airport, is easily for customer coming and visiting.
b. We can export directly to overseas customer, no need to deal with trading company and the second price increase will not occur.
c. We have our own R&D team, production workshop, QC management team,international marketing team and after service team.
2. Q:What's the delivery time?
A: a. 20 days delivery upon receipt of advance deposit if we have ready in stock for normal standard model.
b. ISUZU & Chinese brand chassis 3 months upon receipt of advance deposit.
c. European brand chassis 9 months upon receipt of advance deposit.
3. คำถาม: วิธีการชำระเงินของคุณคืออะไร?
ตอบ: T/T และ L/C เป็นที่ต้องการ.
4. คำถาม: คุณจัดการขนส่งสำหรับรถยนต์หรือไม่?
ตอบ: ใช่ เราสามารถจัดการการขนส่งตามเงื่อนไขการค้า.
5. คำถาม: การบรรจุเป็นอย่างไร?
ตอบ: การบรรจุทั้งหมดเป็นไปตามมาตรฐานการส่งออก.
หากมีคำถามอื่น ๆ โปรดอย่าลังเลที่จะติดต่อเราทางนี้.
