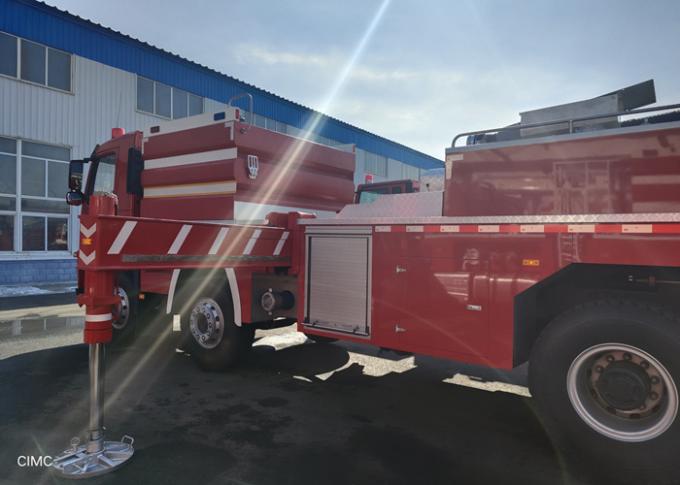

DG70Aerial Platform fire truck is the most advanced world class fire-fighting truck adopting PLC automatic computerized control technology is very effective and safe for rescue and fire-fighting application particularly for high rise buildings in the city and oil industries. The hydraulic and electrical control system are designed according to the latest international standards, to ensure good functionality, stability, safety and reliability, make this turntable ladder to be the ultimate solution for the actual fire-fighting and rescue of metropolitans, urban and rural areas.
The chassis is volvo brand(8×4 driving), The superstructure contains the mechanism of continuous slewing turntable, telescopic boom, fly- jib, and rescue cage. The boom consists of Four (6) sections and one (2) fly-jibs, which are driven by chain and hydraulic cylinders.All mechanisms adopt electro-pneumatic controlled hydraulic drive mode. The advanced computerized automatic control system is able to reduce the speed and to stop the aerials at any outreach limits at any working height quickly, effectively, smoothly and accurately, and able to maximize the stability and reach area.
| Dimension:(L×W×H) | 13600×2500×3900mm | ||
| Full mass | 42600กก | ||
| Max running | ≥85กม./ชม | ||
| outrigger | โครงสร้าง | แบบ H | |
| แนวยาว | 8690mm | ||
| แนวขวาง | 7035mm | ||
| Outrigger leveling | Auto leveling+ manual leveling | ||
| Working cage load | 500kg | ||
| Max. Working height | 70m | ||
| Max. Working radius | 24m | ||
| Boom structure | 6down telescopic boom+2 up telescopic boom | ||
| ปั๊ม | American WATEROUS CX centrifugal fire pump flow:100 L/S @ 1.0 Mpa80 L/S @ 1.60Mpa Inlet flange:DN150,outlet flange:DN100 |
| มอนิเตอร์ดับเพลิง | American Elkhart:Scorpion RF 8294-EXM+SM-1250E,water/foam use electronic control monitor. การปรับการไหล 1150——4800L/min?? ความดันทำงาน 0.55MPa. reach(water)≥55m. reach(foam)≥50m.(the reach will be different depending on water flow) Swivel angle ±45 degree?? up angle 90 degree??depression angle 35degree. ≥100 m การควบคุมแบบไร้สาย. . |
| Foam head | Equip with foam monitor head |
| การควบคุมทางน้ำ | Water way control mode:pneumatic control The position is left side of vehicle |
ไฟ ประปา | Down part:stainless pipe + aluminum pipe | ||
Upper part: telescopic water pipe: aluminum alloy seamless tube Folding water pipe: aluminum alloy seamless tube Soft connection pipe: rubber soft tube | |||
น้ำ ข้อต่อ | ข้อต่อ | spec | Valve |
| การจ่ายน้ำภายนอก | 2XDN80 | Hose coupling with cover lid | |
| ช่องเข้า Monitor ด้านบน | 1XDN125 | วาล์วผีเสื้อแบบนิวเมติก | |
| การจ่ายน้ำจากปลายรถ | 2XDN80 | วาล์วบอลแบบแมนนวลพร้อมฝา | |
| Coupling type:quick coupling or slow coupling option | |||
| electric | turntable operative control, with comfortable chair | ||
| Vehicle control mode:touch screen interface , computer control | |||
2 round siren light on top of cab siren alarm in cab camera reverse monitor vehicle radio interface preservation | |||
Automatic charger plug off wind meter in working cage overload warning in working platform video camera and disk video recording | |||
