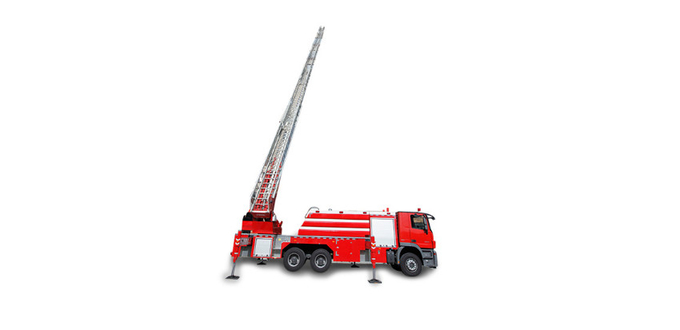

H Outrigger 32 Meters Aerial Ladder Fire Truck Platform 250kw 6×4 Drive
Product Introduction:
- DG 32 aerial platform fire truck is an advanced heavy-duty fire fighting equipment which adopts PLC technology intelligent control. It is mainly used for fire fighting, rescue and material rescue of high-rise buildings in large and medium-sized cities, factories and mining enterprises. It is also suitable for other climbing operations.
- The truck adopts telescopic arm folding arm structure. All the movements are driven by electric hydraulic control, which makes the car easy to operate, flexible, safe and reliable, practical and suitable for the actual needs of urban and rural areas. The intelligent control is adopted in the car, which makes the arm move quickly and smoothly, and easy to operate; the speed range is large, the micro motion is flexible, and the action is accurate; the limit position deceleration and stop can be realized. With the effective cooperation of telescopic boom and folding boom, it can achieve strong leaping performance, send the working platform to a specific space for aerial work, and greatly expand the working range of the vehicle. The arm frame is equipped with an auxiliary ladder made of aluminum alloy welding, which makes it more convenient to save people in high-rise buildings.
Main technical parameters of upper part:
| Outrigger | Structural style | H type | |
| Longitudinal span | 7250mm | ||
| Horizontal span | 5800mm | ||
| Outrigger leveling method | Automatic leveling | ||
| Boom (ladder) frame form | Three-section synchronous telescopic boom + folding boom | ||
| Boom luffing angle | Telescopic arm 87° Folding arm and telescopic arm 0°—175° | ||
| Rotation range | 360°Full rotation | ||
| Outrigger extension time | ≤50s | ||
| The boom rises to the rated height and rotates for 90° time | ≤150s | ||

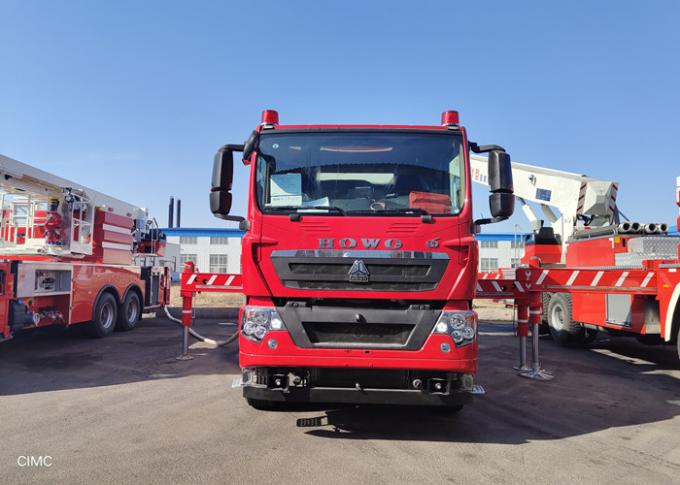

Outrigger mechanism:
The outriggers of the car adopt an H-shaped structure, the horizontal jacket is made of high-strength alloy steel profiles, and the auxiliary beam is a box-type structure made of high-strength steel plates after cold bending and welding, thus ensuring the safety and reliability of the supporting mechanism.
Rotation and luffing mechanism:
The pressure oil generated by the main oil pump drives the rotary hydraulic motor to rotate, and the active pinion gear is driven to rotate through the rotary mechanism installed on the turntable, and it meshes with the large inner gear ring of the bearing fixed on the auxiliary beam frame to drive the turntable to rotate left and right.

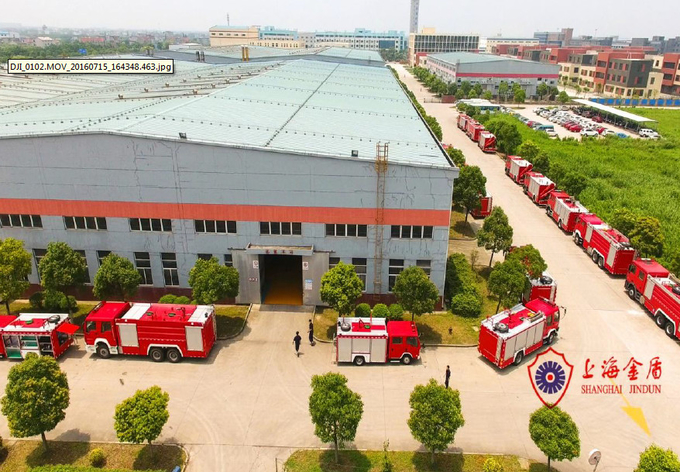

ข้อมูลบริษัท:
Jindun ในฐานะสมาชิกของสมาคมป้องกันอัคคีภัยแห่งประเทศจีน ได้รับการรับรองจาก TUV System, NFPA และ CCCF ด้วยผลิตภัณฑ์ที่ยอดเยี่ยมและเทคโนโลยีที่เป็นนวัตกรรม เรามุ่งมั่นในการพัฒนาสังคมที่ “ปลอดภัย อาศัยอยู่ได้ และมั่งคั่ง”
The company specializes in R & D and production of ladder cars, high pressure jet trucks, rail dual purpose fire engines, remote water supply vehicles, climbing platform vehicles, water tank foam cars, AT cars, emergency rescue vehicles, marine fire engines, anti-chemical detection vehicles, anti-chemical and decontamination vehicles, CAFS fire engines, airport fire engines, unmanned fire-fighting tankers, lighting fire engines, gas trucks, etc., and according to the changes of fire market and customer demand, Continue to develop high-end special fire engines and multifunctional and intelligent fire-fighting equipment.
