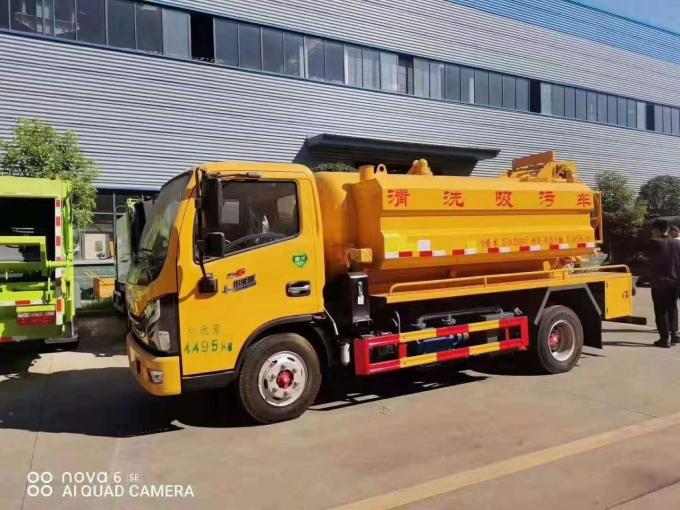

Vacuum sewage suction truck Isuzu (also called vacuum suction truck, sewage suction truck, sewage vacuum truck, waste vacuum tanker, sewer truck, vacuum tank truck, cesspit emptier, gully emptier etc.) This vacuum suction truck is mainly used to suck, transport, unload, and load sewage and sludge existing in the sewer lines and rainwater wells, and it can also be used to suck and transport wastewater, industrial waste oil, and sewage in large factories. Furthermore, sometimes it can even be used to dredge and clean small watercourses.
It is mainly composed of chassis, tank, hydraulic system, high-pressure system,and electrical system.
regarding Sewage Suction Trucks with 270 degrees rotating arm,this truck adds a rotating arm to the conventional suction truck. The arm can be rotated by 270 degrees. In a narrow working area, No need to remove the position of the truck, just adjust the angle of the rotating arm. So this sepcial sewage suction truck is more convenient for the working.
Особливості:—- Cylinder vacuum tank can be lifted hydraulically to 40-45 degree. Rear door can be opened and closed hydraulically.
—- Adopt EU vacuum pump (Italy brand) or equivalent China top brand double vacuum pumps, super powerful, highly efficient.
—- Pump can be operated by a hydraulic motor or by an auxiliary engine.
—- Overfill system with music horn is equipped, preventing the vacuum pump damage from sewage water into vacuum pump when the tank is full.
—- Nice shape, rational structure, durable and long service life.
—- Adopt EU vacuum pump (Italy brand) or equivalent China top brand double vacuum pumps, super powerful, highly efficient.
—- Pump can be operated by a hydraulic motor or by an auxiliary engine.
—- Overfill system with music horn is equipped, preventing the vacuum pump damage from sewage water into vacuum pump when the tank is full.
—- Nice shape, rational structure, durable and long service life.
| Транспортний засіб | Sewage suction truck | |
| Overall dimensions | мм | 6880x2100x2500 |
| Septic tank | m3 | 5 |
| GVW | кг | Appro×8275 |
| Вага без навантаження | Appro×4450 | |
| Loading | Appro×3695 | |
| Колісна база | мм | 3800 |
| Front/Rear overhang | 1030/1950 | |
| Approach/departure angle | ° | 20/14 |
| Max speed | км/год | 90 |
| Standard configuration | 1. Septic tank volume 5000L. | |
| 2. Tank thickness : 5mm carbon steel. | ||
| 3. Looking sewage window. | ||
| 4. Self flow exit. | ||
| 5. Cleaning device. | ||
| 6. Fecal suction pipe 5m. | ||
| 7. Vacuum pump. | ||
| 8. Oil water separator, overflow valv. | ||
| Chassis Parameter | ||
| Кабіна | Single row cabin, no air conditioner, power steering, 2 passengers. | |
| Тип приводу | 4×2 | |
| Двигун | Brand : DONGFENG CHAOCHAI POWER | |
| Model : CY4102-E3C, 120hp | ||
| Fuel type : diesel. | ||
| Displacement : 3856ml | ||
| Emission standard : Euro 3 | ||
| Трансмісія | 5-speed, manual | |
| Tire model | 8.25-16 | |
| No.of tire | 6pcs | |
