25米高度4000升泡沫和18550升水水塔梯子消防车6×4驾驶
JP25高喷水塔消防车是一种新型消防车辆。我们独立设计和开发了该车辆，旨在丰富高压喷水车的功能配置并提高其作战能力。.
P25高喷水塔消防车可根据客户要求从沃尔沃底盘、奔驰底盘或斯堪尼亚底盘改装，配备两折叠臂，最大工作高度为25米。.
轮胎
| Front axle | 4× 385/65 R22.5 highway tires |
| Rear axle | 8× 315/80 R22.5 traction tires |
| Rim | 11.75×22.5/9.00×22.5 |
| 备胎 | 1×315/80 R22.5 highway tire with rim |
PTO
| 模型 | ZF NMV221, Full power |
| Specification parameter | Anti-clockwise Speed ratio1.5 Max. torque 1300N.m 120mm flange plate |
臂架结构
| 2 folding boom, welded with high-strength steel | |
| 最高工作高度 | 25m |
| 最大工作半径 | 10m |
| Rotation range | 0-360° |
| Boom extending time | ≤80s |
| 支腿伸展时间 | ≤45s |
| Hydraulic system pressure | 20MPa |
| Max. wind velocity | 12.5m/s |
| Outrigger longitudinal and transverse | 5950×2040mm |
| Upper boom change angle | 0-80° |
| Lower boom change angle | 0-160° |
| Allowed working range: Shown as pic1 | |
Fire fighting performance
| Spray flow/pressure | 70 L/s @ 1.6MPa |
| Spray range(water/ foam) | ≥70/60m |
| Foam proportioner | 0.5-10%(full-automatic) |
消防泵
| 制造商 | HALE |
| 模型 | 8FC-150 |
| 流量 | 1.03MPa下150升/秒 |
| Vacuum pump | 真空度≥85KPa，灌泵时间≤50秒 |
制动系统
ABS function, front axle disc brake/rear axle drum brake
352CC air compressor
FAQ:
1. Q:Are you a factory or a trade company?

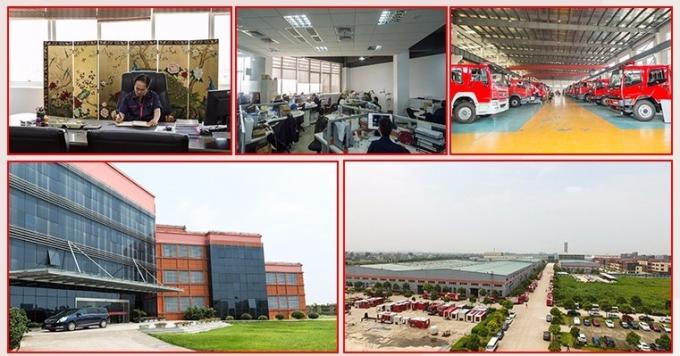

A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.
2. Q:Where is your factory located?
A:We are located in Shanghai Province,China.
3. 问：你们的付款方式是什么？
答：优先选择电汇和信用证。.
4. 问：你们为车辆安排运输吗？
答：是的，我们可以根据贸易条款安排运输。.
5. 问：包装情况如何？
A:所有包装符合出口标准。.
如有其他问题，请随时与我们联系。.
