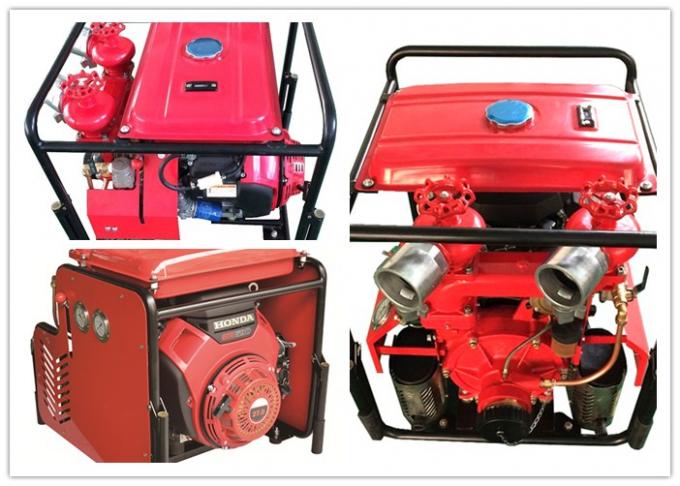

weight 98.5KG Middle pressure and large flow Portable fire pump Highest lift 75m
| 引擎 | 类型 | Four stroke |
| Number of cylinders | Double cylinder | |
| Cylinder diameter * stroke (mm) | 78*72 688cc | |
| output power | 17.9kW (27PS) | |
| Fuel type | 93# or more unleaded gasoline | |
| 油箱容量 | 14L | |
| Engine oil system capacity | 1.9L | |
| 启动模式 | Hand start, electric start | |
| water uptake | Water diversion mode | Vacuum pump water diversion -4 slider |
| 最大吸水深度 | 9M | |
| 引水时间 | ≤20S | |
| Pumping | Type of pump body | Single stage centrifugal pump, single suction inlet |
| Diameter of water intake | 3inch (80mm) | |
| Outlet diameter | 2.5inch(65mm) | |
| Number of outlets | 2 | |
| Type of outlet valve | Ball valve | |
| performance | Highest lift | 75m |
| 额定流量 | 1080L/min | |
| 额定压力 | 0.5Mpa | |
| overall | weight | 98.5KG |
| Size (mm) | 700*610*700 |
