PY330M 烟雾排放车是我公司根据消防行业不同消防设备需求独立开发的大功率、大容量和高压烟雾排放车。它用于隧道和大型火灾现场的供气、排烟、清洁、除尘和冷却。它由底盘、主空气管道、次空气管道、臂架、发动机、液压系统、传动系统和水泵系统组成，并配备有一定长度的正负压空气管道。.
底盘（原装进口）
主要规格
| 模型 | TGS 33.480 6X4 BB |
| CCC 型号 | TGS 33.480 |
| 驱动类型 | 6×4 |
| 驾驶室 | MAN TGS L 驾驶室 |
| 轴距 | 5100+1400 毫米 |
| 后悬挂 | 2750 毫米 |
| 最大发动机功率 | 353 kW/480 HP (G5) |
载重能力
Chassis weight: 9,593 kg (4996+4597, this data is for reference only)
Maximum allowable load: 23,407 kg (wheelbase 5,100 mm)
Front axle allowable load: 7,500 kg (7,000 KG for record)
Rear axle allowable load: 2×13, 000 kg (26000KG)
Vehicle allowable total weight: 33,000 kg
引擎
模型: MAN D2676LF40
Displacement: 12.419 liters
Maximum power: 353 kW/480 HP at 1,900 rpm
Maximum Torque: 2,300 Newton Meters at 1,050-1,400 rpm/min
Emission Standards: Meeting National 5 Emission Standards
Six-cylinder 24-valve in-line turbocharged intercooled electronically controlled common rail injection diesel engine, temperature-controlled fan, fuel filter with heating function, plus fuel filter with heating function, oil-water separator, flame preheating cold start system (suitable for cold areas), 80 dB noise reduction treatment, constant speed cruise control system, etc.
External Data Exchange Control Module KSM

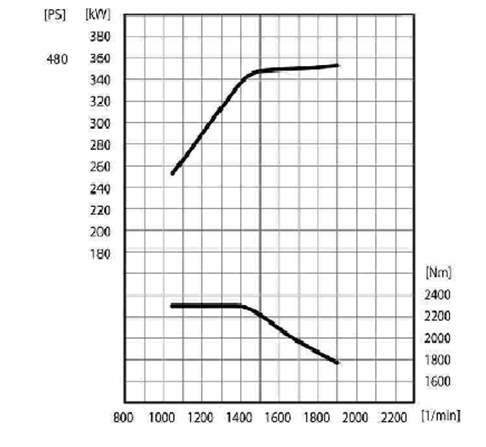

Equivalent to external control throttle. The computer can set the engine speed to: 1. stepless speed regulation; 2. step speed regulation – which can be fixed at any speed ranging from idle speed to maximum engine speed. Engine power curve:
