Airport fire truck can be used for rapidly rescuing aircraft passengers and crew, and extinguishing fire. It is also applicable to building firefighting.

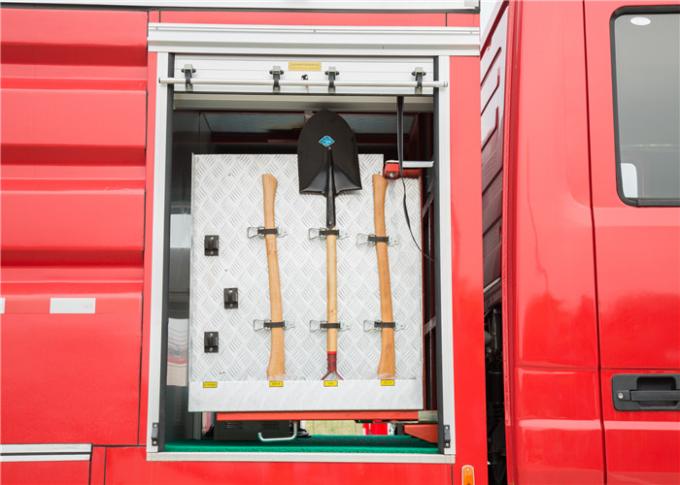

The total weight of airport fire truck is 29 tons, using the German Mercedes-Benz ACTROS 3360 chassis, 6 × 6 drive, Germany Mercedes-Benz OM502LA water-cooled V-type eight-cylinder 24-valve turbocharged and intercooled diesel engine electronically controlled common rail injection, 9500L water tank, 1200L foam tank, equipped with controlling fire-fighting equipment and rescue equipments in the cab.
Basic Parameter:
| Overall size | ≤10000mm×2500mm×3900mm |
| Wheelbase | 4380mm??1450mm |
| 総重量 | 29000kg |
| Fire-extinguishing agents | water 9500L,foam 1200L, dry powder 300kg |
| 最大エンジン出力 | 440KW (598hp)/1800r/min |
| 排出基準 | EURO IV |
| Max. speed | 110km/h |
| Max. speed | (when water pump works with full power): ≥40km/h |
| アプローチアングル | 30° |
| デパーチャーアングル | 30° |
| Cold braking efficiency | braking distance of about 7m, at 30km / h. |
| 加速 | the temperature at 7 ?? above, under full load (greater than 10000L) ,accelerating from rest to 80km / h or more is not more than 38s |
| ポンプ流量 | 1.0Mpa,6000L/min |
消防ポンプ
| 製造者 | America HALE |
| モデル | RSD100 |
| Flow rate | Normal pressure: 1.0Mpa, 6000L/min. |
| 駆動 | By the rear-mounted DCEC CUMMINS engine power ≤195kw / 2200 rpm |
| Vacuum device | Electric primer pump, Max. suction depth is 7.5m, vacuum ratio 85%,prime time ≤80s |
| Location | mid-mounted |
| Pipeline material | pipeline and ball valve are made of stainless steel (304) |
| Tank water inlet | two for each side (total is four), with strainer |
Automatic Foam Proportioner System
| 製造者 | America W.S Darley & Co., Ltd. |
| モデル | AF125 |
| Mixing ratio | 0.5%??10% |
| Foam flow rate | 0.13L/s??7.5L/s |
| ポンプ流量 | 6L/s??125L/s |
Pump Control Panel
- Position: Left of the fire-fighting pump
- Contain: Gauge instrument switch controls
- Installation: using a standard electrical control box structure, waterproof, insurance, strobe controllers centrally located inside, waterproof and easy to maintain
- Function: through this panel, you can clearly know the engine operating condition, the pump vacuum, pressure, rotate speed, working time, tank level, foam tank level, etc; It can be easily achieved the following operations, like vacuum switch, throttle control, tank water switch, foam tank outlet switch, the mixing ratio selection switch and so on.
FAQ
1. Q: Why should we choose you ?
A: a. We are professional manufacture located in Shanghai city for firefighting trucks products which nearby Pudong International Airport, is easily for customer coming and visiting.
b. We can export directly to overseas customer, no need to deal with trading company and the second price increase will not occur.
c. We have our own R&D team, production workshop, QC management team,international marketing team and after service team.
2. Q:What's the delivery time?
A: a. 20 days delivery upon receipt of advance deposit if we have ready in stock for normal standard model.
b. ISUZU & Chinese brand chassis 3 months upon receipt of advance deposit.
c. European brand chassis 9 months upon receipt of advance deposit.
3. Q: お支払い方法は何ですか？
A: T/TとL/Cが好まれます。.
4. Q: 車両の出荷を手配しますか？
A:はい、貿易条件に基づいて出荷を手配できます。.
5. Q: 梱包はどうなっていますか？
A:すべての梱包は輸出基準に準拠しています。.
他に質問がある場合は、お気軽にお問い合わせください。.
