Arocs 3345 28V 100A Generator Motorized Water Tower Fire Vehicle 6×4 Drive Arocs 3345 1+1 Seats

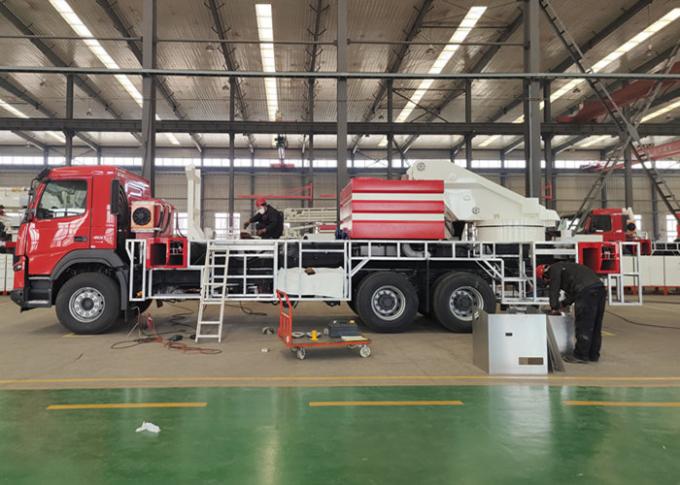

JP32-32 Dual foam tower fire truck is the most advanced world class fire-fighting truck adopting PLC automatic computerized control technology is very effective and safe for rescue and fire-fighting application particularly for high rise buildings in the city ,oil industries, chemical, oil tank and some storage.
| 车辆名称 | JP32m泡沫塔消防车 | |||
| 底盘 | 底盘名称 | 梅赛德斯-奔驰Arocs 3345 | ||
| 驾驶 | 6×4 | |||
| 轴距 | 4800+1350毫米 | |||
| 发动机 | 欧五排放标准，涡轮增压，水冷，电控，直列柴油发动机。. | |||
| 发动机功率 | 330千瓦/1,600转/分钟 | |||
| 油箱 | 290升 | |||
| 发电机电池 | 28V/100A发电机，2X12V/170AH电池 | |||
| 驾驶室 | M型驾驶室，1+1座位 | |||
液压倾斜装置，钢制天窗，中央锁定，后视镜电控和加热，驾驶员侧：广角后视镜，副驾驶侧：广角后视镜和下视镜，地面视镜，可调舒适驾驶座椅，副驾驶可折叠座椅，电控窗，踏板灯，CD收音机，热风系统，空调，管道过滤器。. 仪表盘显示，奔驰Telligent®智能维护系统，适合中国的数据记录仪，温度计，燃料假设指示，倒车警告。. 奔驰Telligent®智能制动系统，（ABS）功能和（ASR）功能，双回路压缩空气制动，制动压力10bar，辅助制动系统和排气制动系统。 .
| ||||
| 尺寸：（L×W×H） | 约11675×2500×3915mm | |||
| 总重量 | 32350千克 | |||
| 最大行驶 | ≥90公里/小时 | |||
| 支腿 | 结构 | H型 | ||
| 纵向 | 5650毫米 | |||
| 横向 | 5800毫米 | |||
| 支腿平衡 | 自动平衡 | |||
| 最高工作高度 | 32/32米 | |||
| 最大工作半径 | 20/20米 | |||
| 臂架结构 | 2节伸缩臂（下）+ 2节飞臂（上） | |||
| 臂的动作角度 | 伸缩臂下垂角度 0°——88° 折叠臂和伸缩臂 0°——165° | |||
main feature and statement
2.1 Brief introduction
JP32-32 Dual foam tower fire truck is the most advanced world class fire-fighting truck adopting PLC automatic computerized control technology is very effective and safe for rescue and fire-fighting application particularly for high rise buildings in the city ,oil industries, chemical, oil tank and some storage.
The superstructure contains the mechanism of continuous slewing turntable, Telescopic booms, fly folding jib, infinite rotary turntable, All mechanisms adopt electro-pneumatic controlled hydraulic drive mode. The advanced computerized automatic control system is able to reduce the speed and to stop the aerials at any outreach limits at any working height quickly, effectively, smoothly and accurately, and able to maximize the stability and reach area. remote-controlled large flow water-foam monitor, can remotely control the monitor to discharge water/foam in the mode of straight stream and dispersed stream.
2.2 STABILISING / JACKING SYSTEM
2.2.1 The Jacks shall be H-type construction, and is made of high strength alloy steel, each outrigger shall have two separate hydraulic cylinders, the first of which pushes the horizontal outrigger beam out and the second shall push the vertical Jack down.
2.2.2 The Jacking system shall consist of hydraulically operated four outriggers mounted in their housings in the main frame. The outrigger piston rods shall be completely protected by closed protection profile. All jacks and horizontal beams be painted for better corrosion protection.
