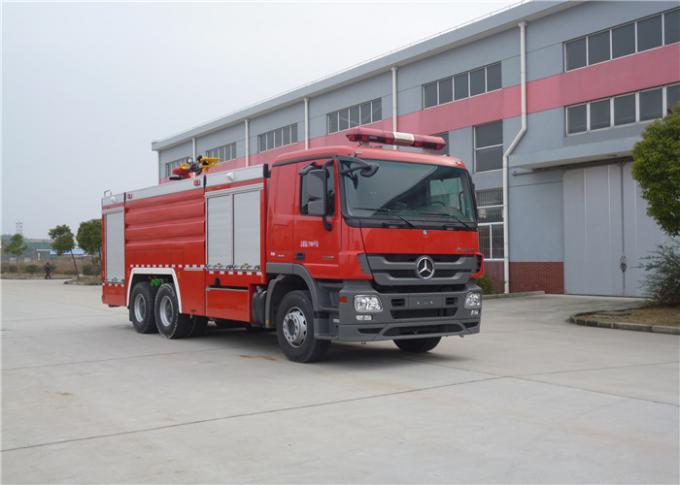

265KW 6×4 Driving Commercial Fire Trucks Water and Foam Tanker Fire Truck
The commercial fire truck was modified from Germany imported Mercedes-Benz Actros3336 chassis, 6×4 drive.Max power 265kw. Single Cab with two seats. The commercial firefighting truck could load 6500kg water and 6000kg foam.
Technical specification for commercial firefighting trucks
Main datas of commercial fire trucks
| Dimension | 9720×2500×3700mm |
| G.V.W | 28000kg |
| Complete vehicle shipping mass | 15350kg |
| Seat capacity | 2, include driver |
| Max. power | 265kw |
Chassis
| Brand | Mercedes-Benz |
| Model | Actros3336 |
| Drive type | 6×4 |
| Cab | Manual operation hydraulic forward turnover |
| Wheelbase | 4500+1350mm |
| Max. total mass | 18000kg |
| Max. speed | 95km/h |
| Min. turning diameter | <21m |
| Approach angle | 17° |
| Departure angle | 13° |
Firefighting systems of commercial fire truck
| Capacity | Water: 6500kg, Foam: 6000kg |
| Material | 304 high quality corrosion resistant plate |
| Structure | Total side girder |
| Pressure | 1.0MPa |
| Equipment | 2 manholes 1 overflow device 2 liquid level sensors 2 DN50 drain outlets with valve 4 filling pipe ends Conform to rule GA39.4-92 |
Pipeline
| Outlet pipeline | 2×DN80 ordinary pressure outlet 1×DN50 ball valve |
| Suction inlet | 1×DN150 suction coupling 1×DN150 pneumatic butterfly valve |
| Monitor pipeline | 1×DN125 monitor pipeline 1×DN125 butterfly valve |
| Residual water outlet | Water cock |
| Pump drive system | NMV200 |
| Drive shaft | High balance precision |
Fire monitor
| Model | POK, PLC6000 |
| Install position | Rear roof |
| Flow rate | 80L/s |
| Pressure | 1.0MPa |
| Throw range | water≥75m ,foam≥70m |
| Rotation angle | Level ≥270° Max. elevation angle ≥+45° Max. depression angle ≥-7° |
Foot pedal
Location: At the bottom of roller shutter door.
Material: Steel frame covered by aluminum alloy checkered plate.
Structure: adopt the gas springs plus shutter fasten, safe and reliable, each petal plate bearing ≥150Kg.
FAQ:
1. Q:Are you a factory or a trade company?
A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.
2. Q:Where is your factory located?
A:We are located in Shanghai Province,China.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard of firefighting trucks.
6. Q:What's your main products?
A:Our main product include : commercial fire trucks, water & foam tank trucks, CAFS fire trucks, chemical fire trucks, emergency rescue vehicles, pumper fire truck, lighting trucks, aerial ladder and platform trucks, airport fire trucks, water tower fire trucks and other general fire trucks. The products have been sold to more than 20 countries.
Any other questions, please do not hesitate to contact with us.
