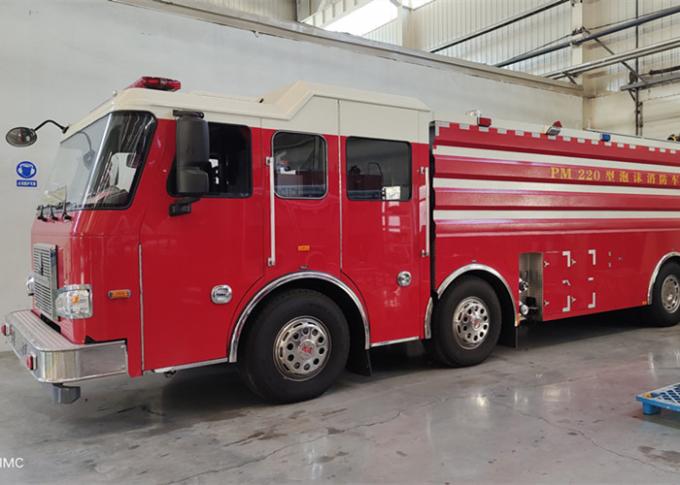

Q235A High Quality Steel Combine With Porous Steel Foam Fire Fighting Trucks
Vehicle
| Dimension (L×W×H) | 11775×2500×3700mm |
| Gross weight | 41980kg |
| Complete vehicle shipping mass | 18000kg |
| Seat (inc. driver) | 6 |
| Max. power | 309kw |
Chassis
| Manufacturer | Sinotruk HOWO |
| Model | ZZ5437V4667D5 |
| Drive type | 8×4 |
| Cab | Flattop metal forward type |
| Wheelbase | 1800+4600+1350mm |
| Max. speed | 95km/h |
| Min. turning diameter | ??30m |
| Approach angle | 16° |
| Departure angle | 13° |
| Engine type | Inline six-cylinder, water inter-cooling, direct injection diesel engine |
| Model | D12.42—40 |
| Max. power | 309kw |
| Max. torque | 1820N•m |
| Emission standard | China IV |
| Clutch | Pull, dry |
| Gearbox model | Manual, 10 forward gear |
Electrical system
The main lights in the cab at the top of the long row of lights, configure the 100W alarm control system; a strobe lights installed on both sides and the middle of each compartment (two red and blue)
Painting
Red paint: cab, body (shutter doors, except decorative strip)
Other: according to customers requirements
Onboard document
- Vehicle operation and maintenance manual
- Chassis operating manual
- Chassis operation and maintenance manual
- Chassis quality warranty card
- Chassis certificate, vehicle certificate, 3C logo
- Engine code copy
- Chassis code copy
- Onboard equipment list
- Follow-up service card
- Hand-over list
