88Kw 118 Horsepower Water Tanker Fire Truck With Hydraulic Control Clutch
Vehicle
| Dimension (L×W×H) | 6255×1945×2940 (mm) |
| Gross weight | 6630(kg) |
| Complete vehicle shipping mass | 4255 (kg) |
| Extinguishant capacity | Water: 2000L |
| Seat (inc. driver) | 2+3 |
| Max. power | 88/2900 kw/hp |
Chassis
| Manufacturer | ISUZU |
| Model | QL1070A1HWY |
| Drive type | 4×2 |
| Cab | Equipped with 3 air resporator |
| Wheelbase | 3360mm |
| Chassis net weight | 2070kg |
| Max. allowable load | 6725kg |
| Max. speed | 105km/h |
| Min. turning diameter | ??13.6m |

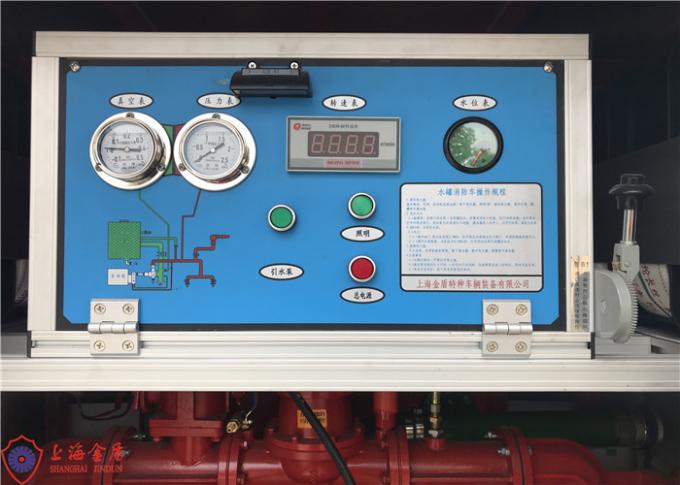

Equipment tank and pump room
| Material | Q235A High quality material |
| Structure | Steel welding construction |
| Door | High quality light aluminium alloy rolling door |
| Interior structure | Total side girder |
Equipment layout principles
1, According to combat programming and combat development design equipment integration.
2, According to human body engineering principle design all kinds of equipment frames.
3, According to using logic and frequency of use place equipment.
4, 1-2 action can take any equipment standing on the ground or pedal.
5, Fixed all equipment with rust-proof, vibration-proof, anti-drop, scratch-proof special clamp.
