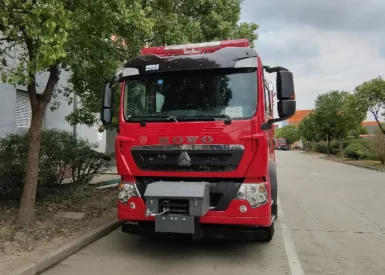

Heavy Duty Large Volume 6×4 Drive Water Tender Fire Truck with 80L/s Fire Turret
The SG120/H water tank fire truck is modified from Sinotruk Howo chassis. Double Row length cab with six seats. The vehicle equipped with fire pump, roof fire turret and 12000kg heavy duty water tanker. Fire monitor flows 80L/s with shooting range aorund 75 meters. The equipment compartment, water tanker room and pump room are structured separately.The layout of the whole vehicle is reasonable.
Vehicle
| Dimension (L×W×H) | 9920×2500×3600mm |
| Gross weight | 27550kg |
| Complete vehicle shipping mass | 14900kg |
| Seat (inc. driver) | 6 |
| Max. power | 276kw |
Chassis
| Manufacturer | Sinotruk HOWO |
| Model | ZZ5347V4347D5 |
| Drive type | 6×4 |
| Cab | Flattop metal forward turnover |
| Wheelbase | 4325+1350mm |
| Max. speed | 90km/h |
| Min. turning diameter | <22m |
| Approach angle | 16° |
| Departure angle | 12° |
| Engine type | In-line six-cylinder, water inter-cooling, direct injection diesel engine |
| Model | D10.38—40 |
| Max. power | 276kw |
| Max. torque | 1560N•m |
| Emission standard | China IV |
| Clutch | Pull, dry |
| Gearbox model | Manual, 9 forward gear |
| Tyre | 12.00R20/10 |
Fire pump
| Flow | 90L/s |
| Pressure | 1.0MPa |
| Water diversion | Electric primer pump |
| Max. vacuum degree | ≥85 kPa |
| Priming time | ≤80s |
| Auto ring pump foam | PH48x2 |
| Type | Manual |
| Mixing ratio | 3%, 6% |
Fire monitor
| Position | Rear roof |
| Flow | 80L/s |
| Pressure | 1.0MPa |
| Range | water≥75m ,foam≥70m |
| Rotation angle | Level ≥360° Max. elevation angle ≥+45° Max. depression angle ≥-7° |
Liquid tank
| Capacity | Water: 12000kg |
| Material | 304 high quality corrosion resistant plate |
| Structure | Total side girder |
| Device | 1 ingate 1 overflow device 1 liquid level sensor 1 DN50 drain outlet with valve 2 filling pipe end Conform to rule GA39.4-92 |
FAQ:
1. Q:Are you a factory or a trade company?
A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.
2. Q:Where is your factory located?
A:We are located in Shanghai Province,China.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
6. Q: What's the delivery time?
A: 1) 20 days delivery upon receipt of advance deposit if we have ready in stock for normal standard model.
2) ISUZU & Chinese brand chassis 3 months upon receipt of advance deposit.
3) European brand chassis 9 months upon receipt of advance deposit.
Any other questions, please do not hesitate to contact with us.
