Pipeline
| Outlet pipeline | 2×DN80 ordinary pressure outlet 1×DN50 ball valve |
| Suction inlet | 1×DN150 suction coupling 1×DN150 pneumatic butterfly valve |
| Monitor pipeline | 1×DN125 monitor pipeline 1×DN125 butterfly valve |
| Residual water outlet | Water cock |
| Cooling water pipeline | The PTO equipped with a cooling water pipeline connected with the in-outlet pipeline. |

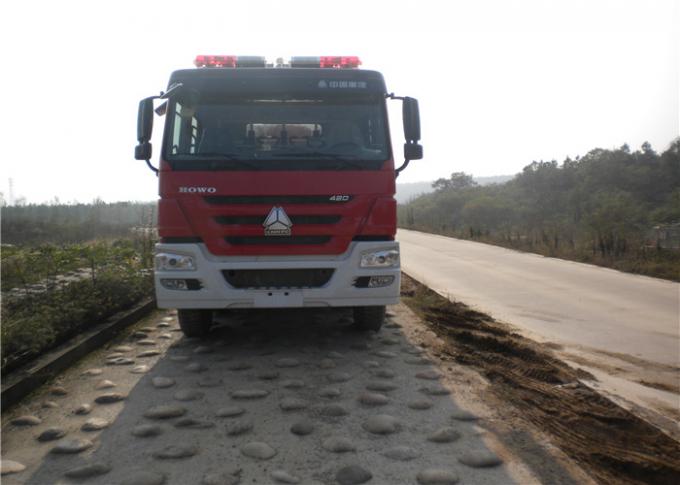

Vehicle
| Dimension (L×W×H) | 11775×2500×3700mm |
| Gross weight | 41980kg |
| Complete vehicle shipping mass | 18000kg |
| Seat (inc. driver) | 6 |
| Max. power | 309kw |
Chassis
| Manufacturer | Sinotruk HOWO |
| Model | ZZ5437V4667D5 |
| Drive type | 8×4 |
| Cab | Flattop metal forward type |
| Wheelbase | 1800+4600+1350mm |
| Max. speed | 95km/h |
| Min. turning diameter | ??30m |
| Approach angle | 16° |
| Departure angle | 13° |
| Engine type | Inline six-cylinder, water inter-cooling, direct injection diesel engine |
| Model | D12.42—40 |
| Max. power | 309kw |
| Max. torque | 1820N•m |
| Emission standard | China IV |
| Clutch | Pull, dry |
| Gearbox model | Manual, 10 forward gear |
Cab
| Structure | Double row, four-door, lengthen cab |
| Seat | 2+4 |
| Equipment | Except the original equipments. There is a storage box with cover under the seat, embedded 4x9L air breathing apparatus fixed mount in the seats |
Side girder
Features: made of welding high quality profiled steels, two longitudinal beams through a plurality of beam intensity bearing joint of high strength bolt connection. The side beam is installed, use girder structure, to ensure that the original car beam of uniform stress, improve the service life of the girder, and reduce deformation caused by components twisted.
FAQ:
1. Q:Are you a factory or a trade company?
A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.
2. Q:Where is your factory located?
A:We are located in Shanghai Province,China.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
Any other questions, please do not hesitate to contact with us.
