Vehicle
| Dimension (L×W×H) | 11310×2500×3630mm |
| Gross weight | 38650kg |
| Complete vehicle shipping mass | 20600kg |
| Seat (inc. driver) | 6 |
| Max. power | 440kw |
Chassis
| Manufacturer | Daimler |
| Model | Actros4160 |
| Drive type | 8×4 |
| Cab | Rotatable type |
| Wheelbase | 1700+4300+1350mm |
| Max. speed | 95km/h |
| Min. turning diameter | ≥26m |
| Approach angle | 23° |
| Departure angle | 11° |
| Engine type | Inline eight-cylinder, four-stroke, water-cooling, electronic direct injection diesel engine |
| Model | OM502LA.IV/3 |
| Max. power | 440kw |
| Max. torque | 2800N•m |
| Emission standard | China IV/Euro IV |
| Clutch | Monolithic, dry |
| Gearbox model | Manual, 16 forward gear |
| Tyre | Forward: 4x 385/65R22.5 Rear: 8x 315/80R22.5 |
Cab
| Structure | Rotatable type |
| Seat | 1+1+4 |
| Equipment | Except the original equipments. There is a storage box with cover under the seat, embedded air breathing apparatus fixed mount in the seats |

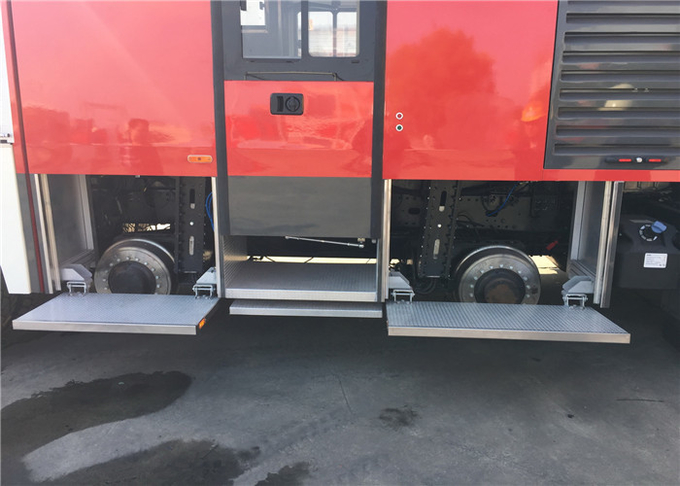

Pedal plate
Location: At the bottom of roller shutter door.
Material: Steel frame covered by aluminum alloy checkered plate.
Structure: adopt the gas springs plus shutter fasten, safe and reliable, each petal plate bearing ≥150Kg.
