シャーシ
| 製造者 | メルセデス・ベンツ |
| モデル | Mercedes Actros3344 |
| 駆動方式 | 6 × 4 |
| キャブ | modified Crew (1 + 1 + 4),Rear rack installation four SCBA |
| Wheelbase | 4500 + 1350 mm |
| Chassis weight | 9230Kg |
| 最大許容荷重 | 23700Kg |
| maximum speed | 104 Km/h |
| 最小旋回直径 | <22.3m |
| エンジン | V-type 6-cylinder turbocharged and intercooled diesel engine |
| モデル | Mercedes-Benz OM501 LA |
| Maximum engine power | 320Kw / 1800r / min |
| 最大トルク | 2100N.M / 1080rpm |
| emission standard | Euro IV |
| クラッチ | monolithic, dry type |
| トランスミッション | Mercedes-Benz G240-16, fully synchronized gearbox. |

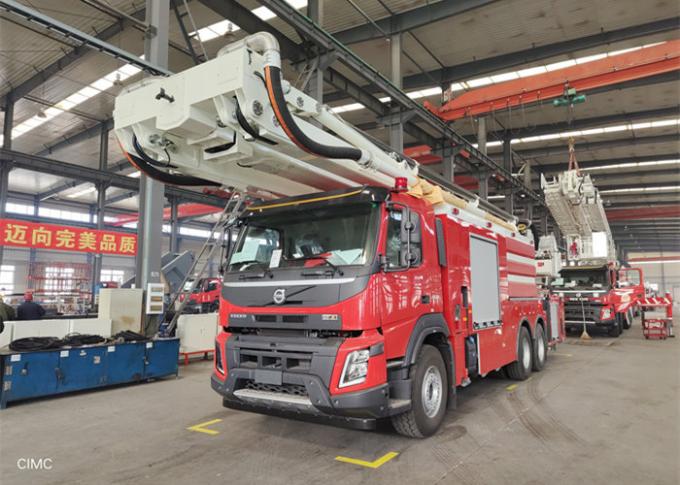

Crane superstructure:
Telescopic crane in the form of three flexing + one folding arm (arm folded laterally arranged), the use of high strength steel welded together, the specific parameters are as below:
| Maximum working height | 32m |
| Maximum working range | 20m |
| Pump rated flow | 95L / s |
| Boom Action time | ≤110s |
| leg action time | ≤40s |
| 油圧システム圧力 | 20MPa |
| The maximum allowable wind speed | 12.5m / s |
| Outrigger span | 5800 × 4820mm |
追加装備
| No | Specification/model | ユニット | 数量 | Remarks |
| 1 | Suction assembly 6in.×2m | pc | 4 | KD150 |
| 2 | Fire hose φ65×20 m | Pc | 6 | KDK65 |
| 3 | Fire hose φ80×20m | pc | 6 | KDK80 |
| 4 | filter | Pc | 1 | KY150 |
| 5 | Three way distributor F??80/65×3-1.6 | Pc | 1 | ??80(3×??65) |
| 6 | 吸引レンチ FS150 | Pc | 2 | 6in |
| 7 | Reducer KJK65/80 | Pc | 2 | 65male to 80 female |
| 8 | Reducer KJ65/80 | pc | 2 | 65female to 80 male |
| 9 | Heterotype Reducer | Pc | 2 | |
| 10 | Heterotype Reducer | Pc | 2 | |
| 11 | Bandage FP470 | Pc | 4 | |
| 12 | Hook FG600 | Pc | 2 | |
| 13 | Wrench of over ground fire hydrant FB450 | Pc | 1 | |
| 14 | Wrench of under ground fire hydrant FBX800 | Pc | 1 | |
| 15 | Hose bridge FH80 | Set | 1 | |
| 16 | Wrench (foam suction pipe) | Pc | 1 | |
| 17 | Direct on-off water gun QZG3.5/7.5 | Pc | 1 | |
| 18 | Foam suction pipe assembly KD50 | Pc | 1 | |
| 19 | Fire extinguisher | pc | 1 | 2Kg |
