i. Working Condition
1,Altitude: 0-4500m
2,Temperature: -25??–+45??
3,Allowed working condition: solid, stable land, the vehicle should be horizontal
4,Wind force: ≤6 degree
ii. Working Range

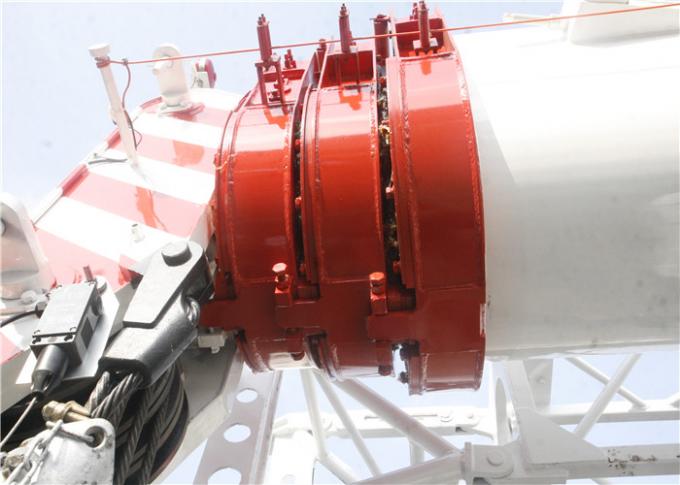

“KAI FAN” Brand KFM5323JQZ25G5(QY25G5)Crane is fully hydraulic telescopic crane, the maximum rated lifting capacity is 25t. It can be applied in various conditions for lifting and installation work, such as industrial and mining establishments, building site, station, sea port, warehouse and so on.
iii. Main Parameters
Chassis detail
| Items | Value |
| Chassis Model | TAZ5323J |
| Engine model | WP10.270 |
| Rated power/speed | 199/2200 KW/(r/min) |
| Max. Torque/rotate speed | 1100/1200-1600 N.m/(r/min) |
Working performance
| Items | Value |
| Max. lifting weight | 25000 kg |
| Max. Lifting force of the basic boom | 970 kn.m |
| Max. Lifting force of the longest main boom | 470 kn.m |
| Max. Height of the main boom | 40 m |
| Max. Height of the vice boom | 48.2 m |
| Max. Speed of the single rope (the second stage) | 120 m/min |
Working speed
| Items | Value |
| Extension time of the lift boom | 110 s |
| Lifting time of the lift boom | 60 s |
| Turning speed | 0??2 /min |
Weight Parameters
| Items | Value |
| The whole weight | 31670 kg |
| Load of the front axle | 6850 kg |
| Load of the rear axle (duel axle) | 24820 kg |
Traveling Parameters
| Items | Value |
| Max. Traveling speed | 70 km/h |
| Max. Grade ability | 30% |
| Min. Turning radius | 11 m |
| Min. Ground clearance | 0.27 m |
| Approaching angle | 16 degree |
| Departure angle | 11 degree |
Dimension Parameters
| Items | Value |
| External dimension(length×width×height) | 12790×2500×3460 mm |
| Vertical span of outrigger | 5.35 m |
| Horizontal span of outrigger | 6.1 m |
| Length of main boom | 10.3~39.5 m |
| Length of vice boom | 8.3 m |
| Elevation of boom | -2~80 degree |
FAQ:
1. Q:Are you a factory or a trade company?
A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.
2. Q:Where is your factory located?
A:We are located in Shanghai Province,China.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
Any other questions, please do not hesitate to contact with us.
