213kw Six Seats Emergency Rescue Vehicle Equipped Rescue Crane on Rear

Product Details:

Chassis Brand
Mercedes-Benz
Gross Weight
13066kg
Max. Speed
96km/h
Equipment No.
100pcs
Max. Power
213kw
Seat
2+4
Wheelbase
4425mm
Bumper Winch
Equipped

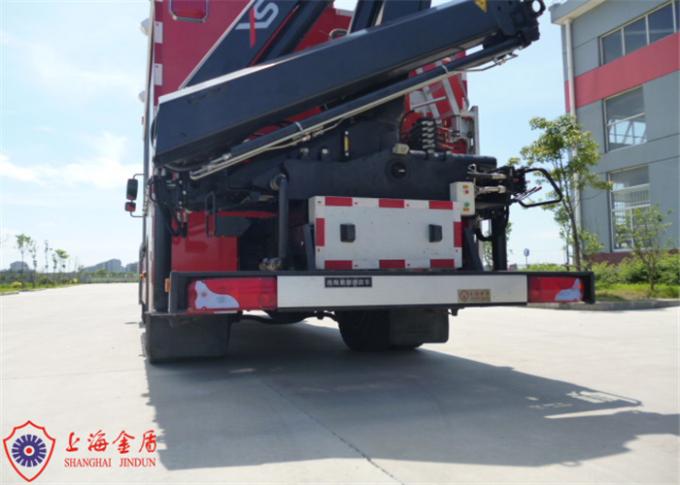

Lifting Crane
Equipped
Product Name
213kw Emergency Rescue Vehicle
Place of Origin
shanghai China
Brand Name
CIMC Jindun
Certification
ISO9001,CCC
Model Number
JDX5130TXFJY100
Minimum Order Quantity
1 unit
Price
Negotiable
Packaging Details
Exporting standard package or customized packing
Delivery Time
90 days after sign contract
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
300 units/year

Vehicle

Dimension (L×W×H)	8655×2500×3500mm
Gross weight	13066kg
Complete vehicle shipping mass	12616kg
Rescue equipment quantity	100pcs
Seat (inc. driver)	2+4

Chassis

Manufacturer	MAN
Model	TGM 18.290
Drive type	4×2
Cab	Crew cab
Wheelbase	4425mm
Max. total mass	18000kg
Max. speed	96km/h
Min. turning diameter	<15.6m
Engine type	In-line six-cylinder, inter-cooling, high pressure common rail, electronic control
Model	D0836LFL30
Max. power	213kw
Max. torque	1150N.M
Emission standard	China IV
Gearbox model	ZF 9S-1310 OD Manual

Electrical system

The main lights in the cab at the top of the long row of lights, configure the 100W alarm control system; a strobe lights installed on both sides and the middle of each compartment (two red and blue), on both sides of the vehicle is provided with LED side lights installed below the rear side marker lamps, after the installation of the contour light.

Painting

Red paint: cab, body (shutter doors, except decorative strip)

White paint: rear bumpers (steel parts), fenders, roof railing
