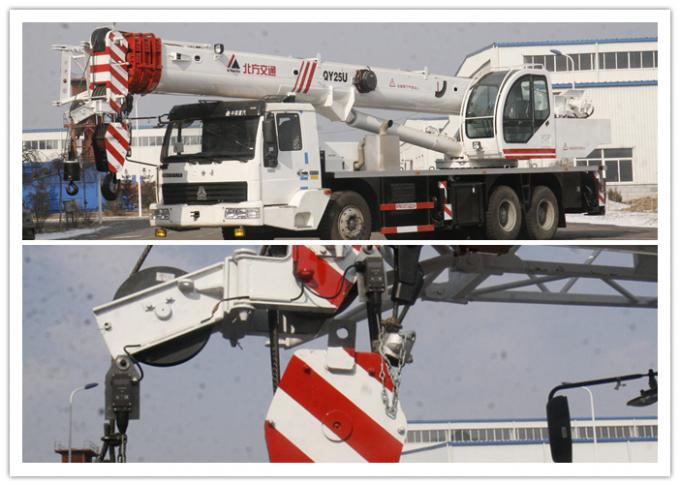

Max. Height of the vice boom 48.2m 25T Truck Mounted Crane Length of vice boom 8.3m
1. Working Condition
1,Allowed working condition: solid, stable land, the vehicle should be horizontal
2,Wind force: ≤6 degree
2. Main Parameters
| Items | Unit | Value | |
Working Performance Parameters | Max. Rated lifting weight | kg | 25000 |
| Max. Lifting force of the basic boom | kn.m | 970 | |
| Max. Lifting force of the longest main boom | kn.m | 470 | |
| Max. Height of the main boom | m | 40 | |
| Max. Height of the vice boom | m | 48.2 | |
| Max. Speed of the single rope (the second stage) | m/min | 120 | |
| Working Speed | Extension time of the lift boom | s | 110 |
| Lifting time of the lift boom | s | 60 | |
| Turning speed | r/min | 0??2 | |
| Vertical span of outrigger | m | 5.35 | |
| Horizontal span of outrigger | m | 6.1 | |
| Length of main boom | m | 10.3~39.5 | |
| Length of vice boom | m | 8.3 | |
| Elevation of boom | ° | -2~80 | |
3. Standard Equipments
1. Electric system
2. Hydraulic system
3. Outrigger
4. Superstructure control system
