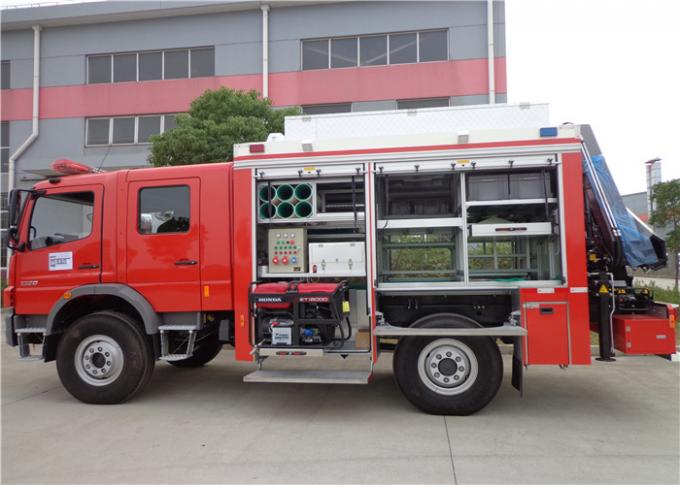

Vehicle
| Dimension (L×W×H) | 8880×2500×3500 (mm) |
| Gross weight | 14900 (kg) |
| Complete vehicle shipping mass | 14450 (kg) |
| Rescue equipment quantity | 100pcs |
| Seat (inc. driver) | 2+4 |
| Max. power | 214kw |
Chassis
| Manufacturer | Daimler |
| Model | AXOR 1829 |
| Drive type | 4×4 |
| Cab | Crew cab |
| Wheelbase | 4500mm |
| Max. loading weight | 18000kg |
| Max. speed | 100km/h |
| Min. turning diameter | <16.5m |
| Engine type | In-line six-cylinder, inter-cooling, direct injection |
| Model | OM906LA.IV/3 |
| Max. power | 214kw |
| Max. torque | 1120N.M |
| Emission standard | China IV |
| Clutch | Monolithic, dry |
| Gearbox model | G131-9 |
| Type | Manual |
Electric generator
| Model | EH3135 BINSON |
| Rated output power | 13.5kVA |
| Max. output power | 14.5kVA |
| Power factor | 0.8 |
| Voltage | 380/220V |
| Electricity current | 16.5A/per phase |
| Frequency | 50HZ |
| Fuel | Petrol |
Lift lighting system
| Manufacturer | Zhejiang Senken |
| Model | SG55-4600F1 |
| Lifting height | 5.5m |
| Above ground level | ≥6.6m |
| Control system working pressure | DC24V |
| Lamps working pressure | 220V |
| Lamps power | 4×600w |
| Lamps horizontal rotating angle | 380° |
| Lamps vertical rotating angle | 330° |
Equipment layout principles
1, According to combat programming and combat development design equipment integration
2, According to human body engineering principle design all kinds of equipment frames.
3, According to using logic and frequency of use place equipment
4, 1-2 action can take any equipment standing on the ground or pedal
5, Fixed all equipment with rust-proof, vibration-proof, anti-drop, scratch-proof special clamp.
Pedal plate
- Location: At the bottom of roller shutter door.
- Material: Steel frame covered by aluminum alloy checkered plate
- Structure: adopt the gas springs plus shutter fasten, safe and
- Reliable, each petal plate bearing ≥150Kg.
FAQ:
1. Q:Are you a factory or a trade company?
A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.
2. Q:Where is your factory located?
A:We are located in Shanghai Province,China.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
Any other questions, please do not hesitate to contact with us.
