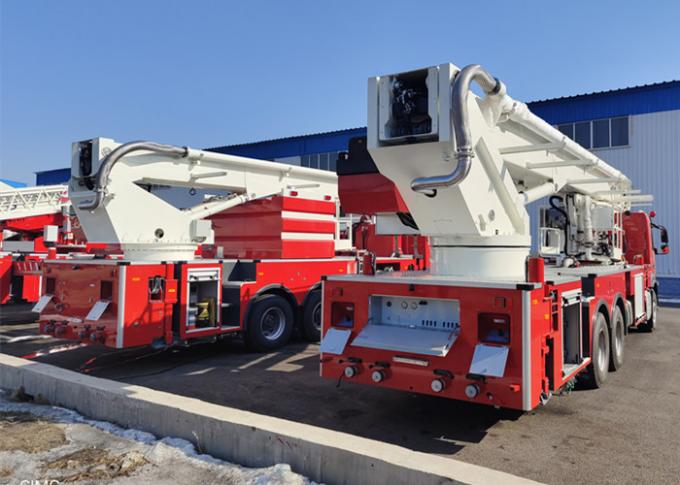

Boom Structure | Main boom + four telescopic booms + one folding boom, welded with HG70 high-strength steel | ||
| Max. working height | 44m | ||
| Max. working range | 21m | ||
| Main boom action angle | -3°??83° | ||
| Folding boom action angle | 0°??180° | ||
| Turntable slewing | Infinite rotation 360° | ||
| Rated Pump flow | 70L/[email protected] | ||
| Boom extending time | ≤140s | ||
| Outrigger extending time | ≤35s | ||
| Hydraulic system pressure | 21MPa | ||
| Max. wind velocity | 12.5m/s | ||
| Outrigger longitudinal and transverse | 5600×5300mm | ||
| Fire fighting system | |||
Fire-fighting performance data | Range(water/ foam) | ≥70/60m | |
| Foam proportioner | 6%(manual adjustment) | ||
| Liquid tank | |||
| Manufacturer | Shanghai Jindun | ||
| Capacity | Water: 5000kg Foam: 2000kg | ||
| Material | Stainless steel 304 | ||
| Structure | Shock-reducing rubber resilient mounting, set vertical and horizontal anti swing plate on subframe | ||
| Device | 2 manhole, with fast locking and opening device 2 fluid level gauge 2 drain outlet, with stainless steel ball valve 1 inner filling pipe end 4 outer filling pipe end | ||
| Pipeline | Water outlet | 4×DN80 ball value coupling | |
| Suction inlet | 1×DN150 hermaphroditic coupling with lid cover(left side) | ||
| Water supply | 2×DN80 ball value coupling | ||
| Liquid inlet | 1×DN50 manual ball valve(left side) | ||
| Water outlet out of the platform | 1×DN65 ball value coupling(in front of platform) | ||
| Coupling type: quick coupling | |||
FAQ:
1. Q:Are you a factory or a trade company?
A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.
2. Q:Where is your factory located?
A:We are located in Shanghai Province,China.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
Any other questions, please do not hesitate to contact with us.
