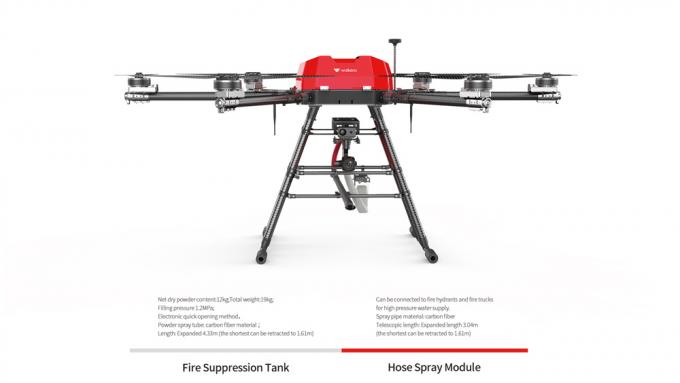

7.86 Inch Screen Remote Controller Fire-Fighting Drone 7.4V Working Voltage
1. Gimbal
Input voltage: 12V Size: 136 * 98 * 139 mm Weight: 452g Stabilizing system: 3-axis (pitch, roll, yaw) Angle control accuracy: static: ±0.008°; Dynamic: + / – 0.02 °; Stabilization: + / – 0.008 ° Controllable rotation range: pitch: -110° to +60°; Level: + 150 °; Roll: plus or minus 10 ° Maximum control speed: pitch: 30°/s°; Level: 30 ° / s; Roll: direct Angle control |
Operating frequency: 5725MHz to 5850MHz 2400 MHz to 2483.5 MHz Maximum image transmission distance: 6KM (open without shielding and electromagnetic interference) Modulation mode: OFDM and MIMO Video code: H.264 Definition: 1080p 30 downward compatible |
2. LIDAR ranging obstacle avoidance
Distance measuring range:100m
Range of obstacle perception: 8m
FOV : Level 20 ° and 3 ° vertically
Measuring frequency: 10 KHZ
3. Balance Charger
AC input: 200-240V
Charging power: 1260W(630W*2)
Discharge power: 100W (50W x 2)
Charging current range: 1.0-12.0 A x 2
Discharge current: 2.0 A*2
Balanced current: 1.0-1.5A
Types of rechargeable batteries: lithium battery (LiPo)/high voltage lithium battery (LiHV)
Number of lithium batteries: 12 Cells x 2
Charging Mode: Fast Charging, Precise Charging, Battery Storage
