85km/h Manual Transmission 10 Forward Gears 18000kg Water Tanker Fire Truck
Product Introduction:
The vehicle is equipped with large fire fighting dose and fast speed, which is the necessary fire fighting main vehicle for petrochemical enterprises, oil terminals, oil fields oil depots, airports and large and medium-sized cities' full-time fire brigade and enterprise fire brigade. It also has good engine performance, reasonable structure and layout, easy operation and maintenance, meet the actual requirements of fire fighting, suitable for large and medium-sized city public security fire brigades, large industrial and mining enterprises, ports, docks and airports professional fire brigades fighting general material fire.
Main features:
Double cab
Special anti-skid aluminum alloy tread plate
The frame structure is sprayed with high quality waterborne paint
Product Parameter
Pump drive system
| Pump drive system | YTQ800F sandwich type circulating water cooling |
| Manufacturer | Yangzhong |
| Drive shaft | High balance precision |
Fire monitor
| Model | Weisite PL64 |
| Position | Rear roof |
| Flow | 64L/s |
| Pressure | 1.0MPa |
| Range | water≥70m |
| Rotation angle | Level ≥270° Max. elevation angle ≥+45° Max. depression angle ≥-7° |
Liquid tank
| Capacity | Water:18000kg |
| Material | 304 high quality corrosion resistant plate |
| Structure | Total side girder |
| Pressure | 1.0MPa |
| Device | 2 ingate 1 overflow device 1 liquid level sensor 1 DN50 drain outlet with valve 4 filling pipe end Conform to rule GA39.4-92 |

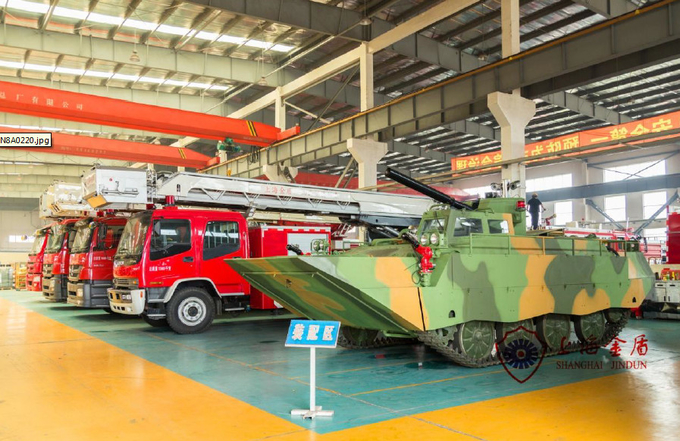

Company Profile:
Jindun as a member of China Fire Protection Association, was certified by TUV System, NFPA and CCCF. By excellent products and innovative technology, we are engaged in developing a “safe, livable and rich society.”
The company specializes in R & D and production of ladder cars, high pressure jet trucks, rail dual purpose fire engines, remote water supply vehicles, climbing platform vehicles, water tank foam cars, AT cars, emergency rescue vehicles, marine fire engines, anti-chemical detection vehicles, anti-chemical and decontamination vehicles, CAFS fire engines, airport fire engines, unmanned fire-fighting tankers, lighting fire engines, gas trucks, etc., and according to the changes of fire market and customer demand, Continue to develop high-end special fire engines and multifunctional and intelligent fire-fighting equipment.
