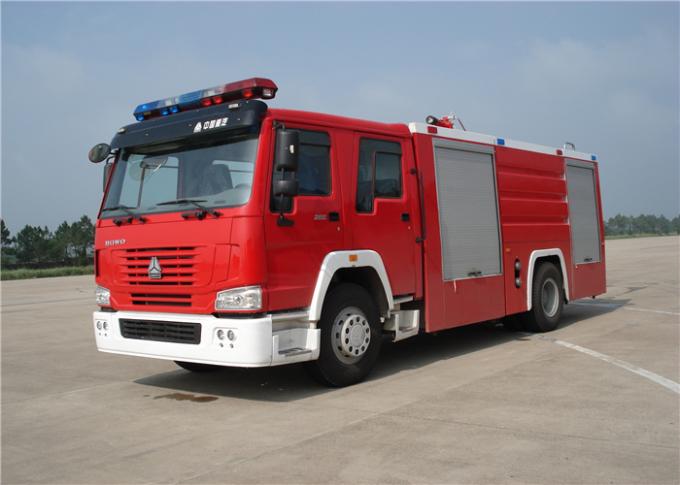

Model: JDX5260GXFGP90 Foam/Powder Fire-Fighting Truck
Specifications
| Overall Size | 9900×2500×3450mm(approx.) |
| Tire | 10.00-20-16PR |
| Maximum speed | 105km/h |
| Wheelbase | 6350mm |
| Full load | 26,000kg |
| Model | FVM23S |
| Driving | 6 × 2 |
| Steering | Right Hand |
| Engine Model | ISUZU |
| Fuel | Diesel |
| Discharge standard | Euro III |
| Engine Power | 270HP |
| Engine type | Inline six-cylinder 24 valves turbocharged cooling engine, thermostatically controlled fan, heating oil and water separator charged the fuel filter, flame preheat cold start system |
Fire monitor
| Model | PS50 |
| Flow | 3000L/min |
| Pressure | 10bar |
| Range | water≥65m |
| Rotation angle | Level 360° Pitching —15°~ +90° |
Liquid tank
| Capacity | Water: 7600kg |
| Material | Qualitative carbon steel |
| Structure | Total side girder |
| Device | 1 ingate 1 overflow device 1 liquid level sensor 1 DN40 drain outlet with valve 4 DN80 filling pipe end Conform to rule GA39.4-92 |
FAQ
1. Q: Why should we choose you ?
A: a. We are professional manufacture located in Shanghai city for firefighting trucks products which nearby Pudong International Airport, is easily for customer coming and visiting.
b. We can export directly to overseas customer, no need to deal with trading company and the second price increase will not occur.
c. We have our own R&D team, production workshop, QC management team,international marketing team and after service team.
2. Q:What's the delivery time?
A: a. 20 days delivery upon receipt of advance deposit if we have ready in stock for normal standard model.
b. ISUZU & Chinese brand chassis 3 months upon receipt of advance deposit.
c. European brand chassis 9 months upon receipt of advance deposit.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
Any other questions, please do not hesitate to contact with us.
