4×2 Cab Rescue Fire Fighting Truck, 18000 kg Load
This cab rescue fire fighting truck is built on a HOWO 4×2 chassis with a modified 1+1+4 cab. A full crew rides with the rescue tools rather than following in a second vehicle. Maximum permissible load is 18000 kg, with axle ratings of 7490 kg front and 13000 kg rear on a 4425 mm wheelbase.
The inline six cylinder turbocharged intercooled engine uses high pressure common rail electronic control. It produces 213 kW with 1150 NM of torque from 9.726 L of displacement. A ZF 9S-1310 OD manual gearbox drives through 12.00R20 tires on 8.5-20 rims. Maximum speed is 96 km/h and minimum turning diameter 15.6 m. That wheelbase keeps the rescue body clear of the rear overhang.
Scene lighting comes from a 13.5 kVA gasoline generator with a Honda power plant. It feeds a 4.0 kW main lighting array on a pneumatic mast that raises about 7.5 m. The four 1000 W lamps rotate 360 degrees horizontally and 360 degrees vertically, and the electrical control cabinet is grouped with the generator set.

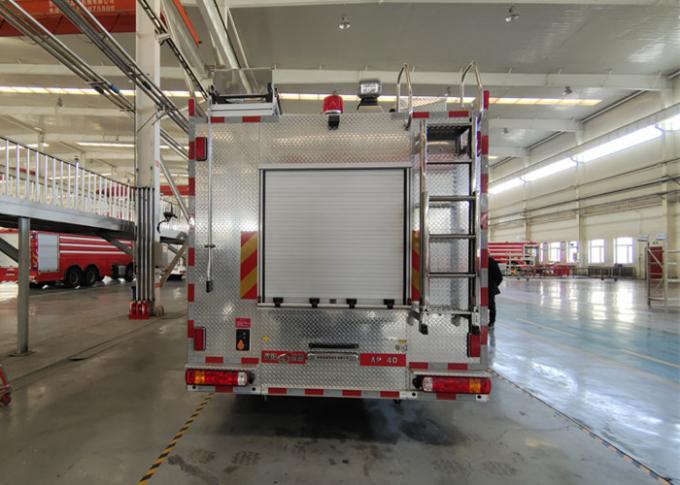

The rescue body carries the demolition, traction and lifting equipment that the crew needs at a traffic accident or structural collapse. The modified cab layout leaves room for breathing apparatus and hand tools. Emission standard is China V, and the chassis is certified for road use with a glazed cab. That keeps the vehicle usable in fleets with strict emission rules.
Full specifications
Where it fits
A fit for municipal rescue companies that answer traffic accidents, structural collapse and vehicle extrication, where the crew must arrive together with tools and lighting. The 18000 kg permissible load carries the full rescue complement on a 4×2 chassis.
