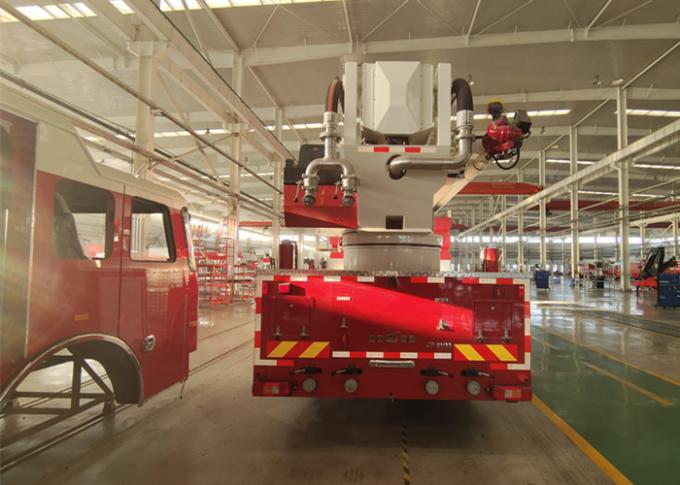

JP25 is a new type of water tower fire fighting vehicle designed and developed by our company. The fire engine combination with different fire fighting equipment requirements of fire fighting industry, comprehensive application of new technology, new technology and new materials, and combined with our own technical advantages, in order to enrich the function configuration of high-pressure jet vehicle and improve its single vehicle combat capability.
Engine
| Model | IVECO CURSOR13 F3BE3681BR |
| Max. engine power | 368Kw/500hp@1900 |
| Max. torque | 2300@1000 |
| Fuel tank | 300L steel fuel tank |
| Emission standard | China IV |
| Urea tank | 55L |
| Clutch | Monolithic |
| Gearbox | ZF 16S 2520 TO manual |
Braking system
ABS function, front axle disc brake/rear axle drum brake
352CC air compressor
Tyre
| Front axle | 4× 385/65 R22.5 highway tires |
| Rear axle | 8× 315/80 R22.5 traction tires |
| Rim | 11.75×22.5/9.00×22.5 |
| Spare wheel | 1×315/80 R22.5 highway tire with rim |
Boom structure
| 2 folding boom, welded with high-strength steel | |
| Max. working height | 25m |
| Max. working radius | 10m |
| Rotation range | 0-360° |
| Boom extending time | ≤80s |
| Outrigger extending time | ≤45s |
| Hydraulic system pressure | 20MPa |
| Max. wind velocity | 12.5m/s |
| Outrigger longitudinal and transverse | 5950×2040mm |
| Upper boom change angle | 0-80° |
| Lower boom change angle | 0-160° |
| Allowed working range: Shown as pic1 | |
PTO
| Model | ZF NMV221, Full power |
| Specification parameter | Anti-clockwise Speed ratio1.5 Max. torque 1300N.m 120mm flange plate |
