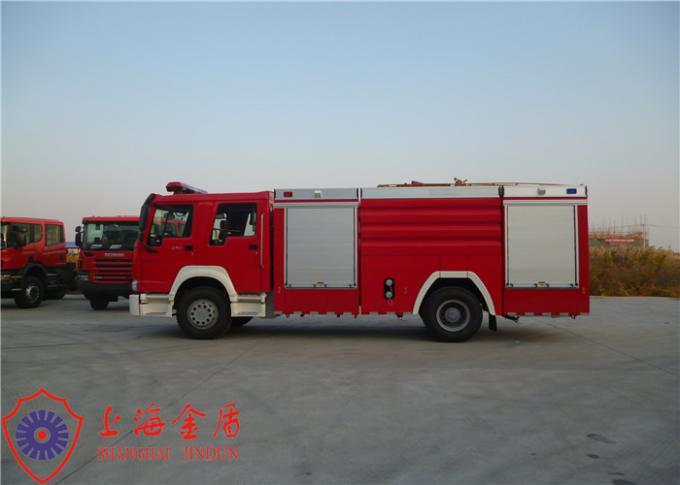

The SG80 water tender fire truck, fire department vehicles is adapted by Sinotruk Howo chassis. 4×2 drive. Equiped with 206kw engine, chinese brand fire pump and manual control fire monitor. The fire department vehicles could load 8000kg water.
Chassis
| Manufacturer | Sino howo |
| Model | ZZ5207M4617D5 |
| Drive type | 4×2 |
| Cab | Flattop four-door lengthen |
| Wheelbase | 4600mm |
| Chassis net weight | 7230kg |
| Max. load | 20490Kg |
| Max. speed | 90km/h |
| Min. turning diameter | ??18.6m |
| Engine type | Inline six-cylinder, four-stroke, water-cooling, inter-cooling engine |
| Model | D10.28-40 |
| Max. power | 206Kw/1900r/min |
| Emission standard | China IV/Euro IV |
| Clutch | Monolithic, dry |
| Gearbox model | Manual 9JS119 |
| Tyre | 12.00—20 |
Fire pump
| Manufacturer | Shanghai Xiongzhen |
| Model | CB10/60-XZ ordinary pressure |
| Flow | 60L/s |
| Pressure | 1.0MPa |
| Water diversion | Piston primer pump |
| Max. vacuum degree | ??85 kPa |
| Priming time | ≤80s |
| Suction depth | 7m |
Side girder
Features: made of welding high quality profiled steels, two longitudinal beams through a plurality of beam intensity bearing joint of high strength bolt connection. The side beam is installed, use girder structure, to ensure that the original car beam of uniform stress, improve the service life of the girder, and reduce deformation caused by components twisted.
Pipeline
| Outlet pipeline | 4×DN80 ordinary pressure outlet 1×DN50 ball valve |
| Suction inlet | 1×DN150 outside inlet 1×DN150 valve |
| Monitor pipeline | 1×DN100 monitor pipeline 1×DN100 butterfly valve |
| Residual water outlet | Water cock |
| Cooling water pipeline | The PTO equipped with a cooling water pipeline connected with the in-outlet pipeline. |
FAQ
1. Q: Why should we choose you ?
A: a. We are professional manufacture located in Shanghai city for firefighting trucks products which nearby Pudong International Airport, is easily for customer coming and visiting.
b. We can export directly to overseas customer, no need to deal with trading company and the second price increase will not occur.
c. We have our own R&D team, production workshop, QC management team,international marketing team and after service team.
2. Q:What's the delivery time?
A: a. 20 days delivery upon receipt of advance deposit if we have ready in stock for normal standard model.
b. ISUZU & Chinese brand chassis 3 months upon receipt of advance deposit.
c. European brand chassis 9 months upon receipt of advance deposit.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
6. Q:What's your main products?
A:Our main product include : water & foam tank trucks, CAFS fire trucks, chemical fire trucks, emergency rescue vehicles, pumper fire truck, lighting trucks, aerial ladder and platform trucks, airport fire trucks, water tower fire trucks and other general fire trucks. The products have been sold to more than 20 countries.
Any other questions, please do not hesitate to contact with us.
