Main lighting system
50kw electric generator, 2x8kw main lamp, pneumatic lifting poker, holder, controller, air compressor, power distribution system, auxiliary lighting.
Lifting lighting control cabinet3
| Model | FI/CB/16.0MH |
| Intelligent electric meters | Voltage, current, frequency |
| Aviation waterproof plug | 1x Electric supply input 2x electric generator Power: 6KW |
| Panel intelligent control | 2x Main light open 1x pitching |
| Panel emergency control | |
| Internally installed | Wireless receiver |

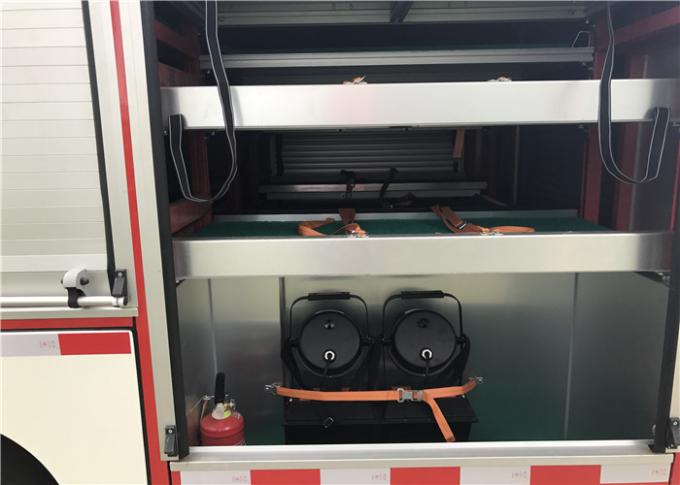

Auxiliary lighting
2x halogen lamp
Power: 2×1500 W
Voltage: 220VAC
Air compressor
Model: QW-400
Type: maintenance-free mute oilless air compressor
Power: 2.5 kW
Flow: 260 L/min
Air supply manage: oil-water separator pressure regulating valve
V
ehicle
| Dimension (L×W×H) | 6705×2200×3210mm |
| Gross weight | 8150kg |
| Complete vehicle shipping mass | 3925kg |
| Electric generator rated power | 50kw |
| Seat (inc. driver) | 3 |
| Rated power | 139kw |
Chassis
| Manufacturer | Isuzu |
| Model | QL11009KARY |
| Drive type | 4×2 |
| Cab | Original X-P301 |
| Wheelbase | 3815mm |
| Max. speed | 95km/h |
| Min. turning diameter | ??15 |
| Engine type | In-line four-cylinder, high pressure common rail, water inter-cooling |
| Model | 4HK1-TCG40 |
| Max. power | 139kw |
| Max. torque | 510N•m |
| Emission standard | China IV |
| Clutch | Diaphragm spring, monolithic, dry, hydraulic power assisted |
| Gearbox model | Manual, 6 forward gear |
FAQ
| 1, Q: Why should we choose you ? |
| A: We are professional manufacture located in Shanghai city for firefighting trucks products which nearby Pudong International Airport, is easily for customer coming and visiting. |
| B: We can export directly to overseas customer, no need to deal with trading company and the second price increase will not occur |
| C: We have our own R&D team, production workshop, QC management team, international marketing team and after service team. |
| D: We will provide the most professional and the best service on every business discussion and operation procedure. |
| E: We can provide special design for different specification requirement according to different orders or tender documents. |
