Vehicle
| Dimension (L×W×H) | 6255×1945×2940 (mm) |
| Gross weight | 6630(kg) |
| Complete vehicle shipping mass | 4255 (kg) |
| Extinguishant capacity | Water: 2000L |
| Seat (inc. driver) | 2+3 |
| Max. power | 88/2900 kw/rpm |
Fire pump
| PUMP Manufacturer | SHANGHAI XIONGZHEN |
| Model | CB10/30-XZ |
| Pressure/ Flow | 1.0MPa/1800L/min |
| Primer type | Piston primer pump |
| Max. vacuum degree | ≥85 kPa |
| Priming time | ≤35s |
| Priming depth | ≥7 m |

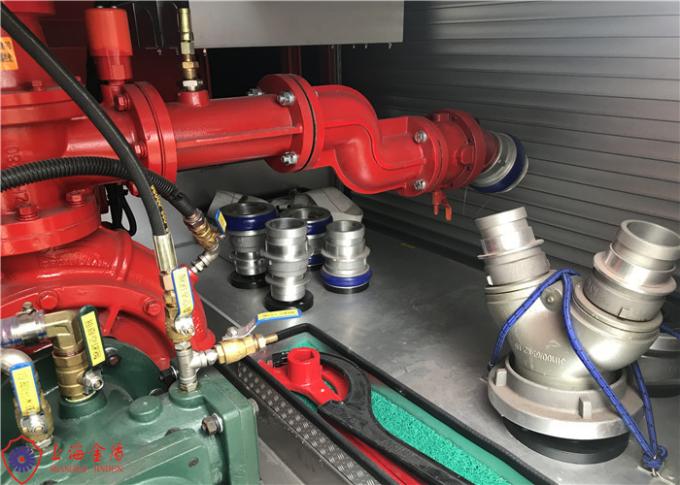

Pipeline
| Outlet pipeline | 2×DN65 ordinary pressure outlet |
| Suction inlet | 1×DN100 suction coupling with lip cover 1×DN150 manual butterfly valve |
| Filling pipe end | 1×DN65 outside filling pipe end 1×DN40 filling pipe end with valve |
| Residual water outlet | Water cock |
| Cooling water | Cooling installation |
Liquid tank
| Capacity | Water: 2000kg |
| Material | Qualitative carbon steel, antiseptic treatment |
| Type | Built -in |
| Device | 1 ingate 1 overflow device 1 liquid level sensor 1 drain outlet with valve 2 filling pipe end Conform to rule GA39.4-92 |
| Emission standard | China IV |
| Clutch | Monolithic, dry, diaphragm spring, hydraulic control |
| Gearbox | MSB manual |
Electrical system
The main lights in the cab at the top of the long row of lights, configure the 100W alarm control system; a strobe lights installed on both sides and the middle of each compartment.
