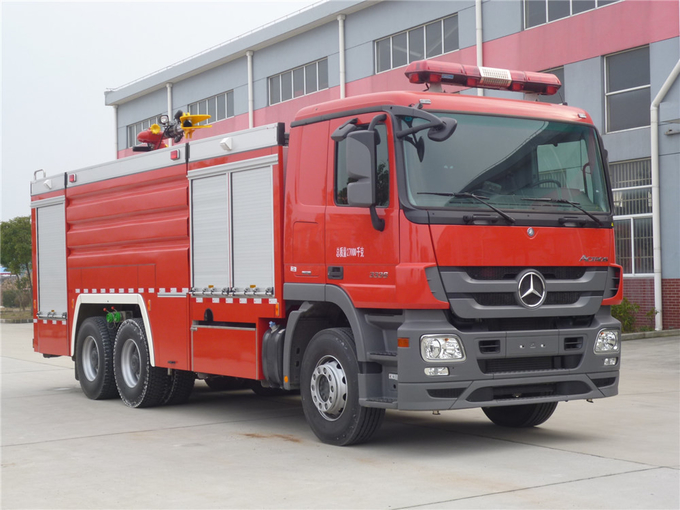

The PM120 fire tender fire fighting vehicle is adapted form Mercedes Benz Actros3336 Chassis. 6×4 drive and max power 265kw. It equipped with large tender of fire extinguisher, 6500 kg water and 6000 kg foam. The Tender fire vehicle can be used on most situations of fire fighting and fire fighting rescue.
Vehicle details for fire tender vehicle
1. Dimension (L×W×H) : 9720×2500×3700mm
2. Gross weight: 28000kg.
3. Complete vehicle shipping mass: 15350kg
4. Seats : 2, include driver
5. Max. power : 265kw
Chassis for fire tender vehicle
| Manufacturer | Daimler |
| Model | Actros3336 |
| Drive type | 6×4 |
| Cab | Manual operation hydraulic forward turnover |
| Wheelbase(mm) | 4500+1350 |
| Max. total mass (kg) | 18000 |
| Max. speed (km/h) | 95 |
| Min. turning diameter(m) | <21 |
| Approach angle | 17 degree |
| Departure angle | 13 degree |
| Engine type | V type six-cylinder, inter-cooling, electronic unit pump diesel engine |
| Model | OM501LA.IV/2 |
| Max. power (kw) | 265 |
| Max. torque (N•m) | 1850 |
| Emission standard | China IV/ Euro IV |
| Clutch | Monolithic, dry |
| Gearbox model | Manual 16 forward gear |
Liquid tank for fire tender vehicle
| Capacity | Water: 6500kg Foam: 6000kg |
| Material | 304 high quality corrosion resistant plate |
| Structure | Total side girder |
| Pressure | 1.0MPa |
| Device | 2 manhole |
Side girder for fire tender vehicle
Features: made of welding high quality profiled steels, two longitudinal beams through a plurality of beam intensity bearing joint of high strength bolt connection. The side beam is installed, use girder structure, to ensure that the original car beam of uniform stress, improve the service life of the girder, and reduce deformation caused by components twisted.
FAQ
1. Q: Why should we choose you ?
A: a. We are professional manufacture located in Shanghai city for firefighting trucks products which nearby Pudong International Airport, is easily for customer coming and visiting.
b. We can export directly to overseas customer, no need to deal with trading company and the second price increase will not occur.
c. We have our own R&D team, production workshop, QC management team,international marketing team and after service team.
2. Q:What's the delivery time?
A: a. 20 days delivery upon receipt of advance deposit if we have ready in stock for normal standard model.
b. ISUZU & Chinese brand chassis 3 months upon receipt of advance deposit.
c. European brand chassis 9 months upon receipt of advance deposit.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
6. Q:What's your main products?
A:Our main product include : water & foam tank trucks, CAFS fire trucks, chemical fire trucks, emergency rescue vehicles, pumper fire truck, lighting trucks, aerial ladder and platform trucks, airport fire trucks, water tower fire trucks and other general fire trucks. The products have been sold to more than 20 countries.
Any other questions, please do not hesitate to contact with us.
