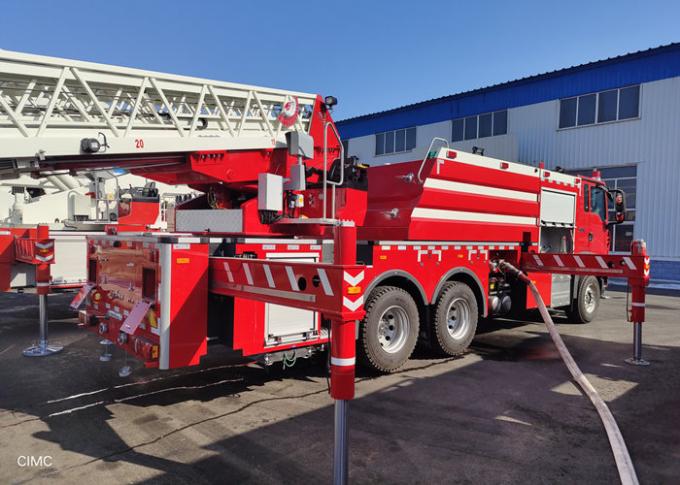

Water≥70m Shooting Range Aerial Ladder Fire Truck Foam≥65m Hale Pump 6000L/Min
Boom Structure | Main boom + four telescopic booms + one folding boom, welded with HG70 high-strength steel | ||
| Max. working height | 44m | ||
| Max. working range | 21m | ||
| Main boom action angle | -3°??83° | ||
| Folding boom action angle | 0°??180° | ||
| Turntable slewing | Infinite rotation 360° | ||
| Rated Pump flow | 70L/[email protected] | ||
| Boom extending time | ≤140s | ||
| Outrigger extending time | ≤35s | ||
| Hydraulic system pressure | 21MPa | ||
| Max. wind velocity | 12.5m/s | ||
| Outrigger longitudinal and transverse | 5600×5300mm | ||
| Fire fighting system | |||
Fire-fighting performance data | Range(water/ foam) | ≥70/60m | |
| Foam proportioner | 6%(manual adjustment) | ||
| Liquid tank | |||
| Manufacturer | Shanghai Jindun | ||
| Capacity | Water: 5000kg Foam: 2000kg | ||
| Material | Stainless steel 304 | ||
| Structure | Shock-reducing rubber resilient mounting, set vertical and horizontal anti swing plate on subframe | ||
| Device | 2 manhole, with fast locking and opening device 2 fluid level gauge 2 drain outlet, with stainless steel ball valve 1 inner filling pipe end 4 outer filling pipe end | ||
Front Pump room and Rear Equipment storage compartment | Manufacturer | Shanghai Jindun special vehicle equipment Co., Ltd |
| Material | High quality aluminum 6061 | |
2mm aluminum sheet Skin and plaque 3mm aluminum alloy base plate and roof | ||
| Structure | High quality aluminum 6061 welding structure | |
| Curtain door | Roller shutter | |
| Ladder | Aluminum profile single ladder | |
Working platform | Dimension | 2000×900×1100mm |
| Material | Toughness seamless profile | |
| Structure | Toughness seamless profile welding structure | |
| Flexing angles | 45° | |
| Cage load capacity | 400KG | |
| Equipped with anemograph, overload alarm device, ultrasonic anti-collision device, hydraulic power tools and quick connectio | ||
3.1 Vehicle certification
3.2 Import declaration certificate
3.3 Automatic import licensing
3.4 3C Certification
3.5 Chassis operation and maintenance manual
3.6 Chassis quality warranty card
3.7 Chassis certificate
3.8 Engine code rubbing member
3.9 Chassis code rubbing member
3.10 Vehicle operation and maintenance manual
3.11 Fire equipment list
3.12 Follow-up service card
3.13 Hand-over list
3.14 Fire truck certificate
