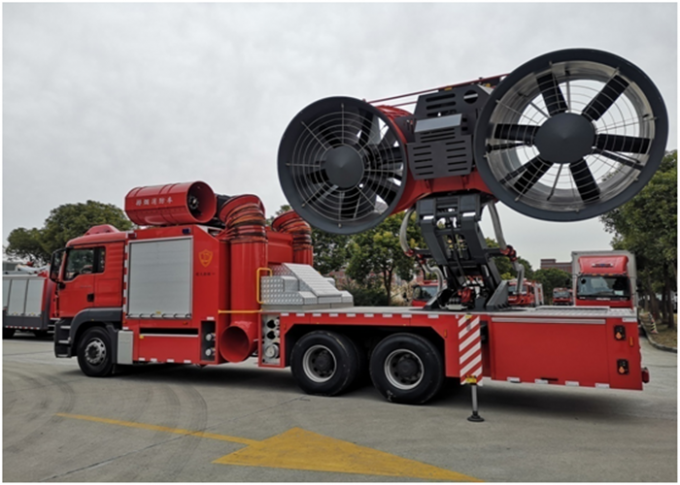

PY330M smoke exhaust truck is a large-power, large-volume and high-pressure smoke exhaust truck developed independently by our company in combination with different firefighting equipment requirements of the fire industry. It is used for air supply, smoke exhaust, cleaning, dust removal and cooling in tunnels and large fire sites. It consists of chassis, main air duct, secondary air duct, boom, engine, hydraulic system, transmission system and water pump system, and is equipped with positive and negative pressure air ducts of a certain length.
Chassis (original import)
Main specifications
| Model | TGS 33.480 6X4 BB |
| CCC model | TGS 33.480 |
| Drive type | 6×4 |
| Drive cab | MAN TGS L Cab |
| Wheelbase | 5100+1400 mm |
| Rear suspension | 2750 mm |
| Maximum engine power | 353 kW/480 HP (G5) |
Load capacity
| Items | Values | Remarks |
| Chassis weight | 9,593 kg | 4996+4597, this data is for reference only |
| Maximum allowable load | 23,407 kg | wheelbase 5,100 mm |
| Front axle allowable load | 7,500 kg | 7000 KG for record |
| Rear axle allowable load | 26000KG | 2×13, 000 kg |
| Vehicle allowable total weight | 33,000 kg | ?? |
Performance
Maximum Speed: 108 km/h (Electronic Speed Limiter 89 km/h)
Minimum turning diameter: 21.7M
Minimum ground clearance: 254 mm (front); 305 mm (back)
