ISUZU Chassis Light Fire Truck 4×2 Drive Type 6705×2200×3210mm Dimension Gross weight 8150kg
| Vehicle | Item | Unit | Value |
| Dimension (L×W×H) | mm | 6705×2200×3210 | |
| Gross weight | kg | 8150 | |
| Complete vehicle shipping mass | kg | 3925 | |
| Electric generator rated power | kw | 50 | |
| Seat (inc. driver) | ?? | 3 | |
| Rated power | kw | 139 | |
| Chassis | Manufacturer | ?? | Isuzu |
| Model | ?? | QL11009KARY | |
| Drive type | ?? | 4×2 | |
| Cab | ?? | Original X-P301 | |
| Wheelbase | mm | 3815 | |
| Max. speed | km/h | 95 | |
| Min. turning diameter | ?? | ??15 | |
| Engine type | ?? | In-line four-cylinder, high pressure common rail, water inter-cooling | |
| Model | ?? | 4HK1-TCG40 | |
| Max. power | kw | 139 | |
| Max. torque | N•m | 510 | |
| Emission standard | ?? | China IV | |
| Clutch | ?? | Diaphragm spring, monolithic, dry, hydraulic power assisted | |
| Gearbox model | ?? | Manual, 6 forward gear |
Pneumatic lifting poker
| Manufacturer | FIRECO SRL |
| Model | CI3912NI |
| Lift height | ≥12 m |
| Contraction | 2m |
| Diameter | 250 mm |
| Load | 200kg |

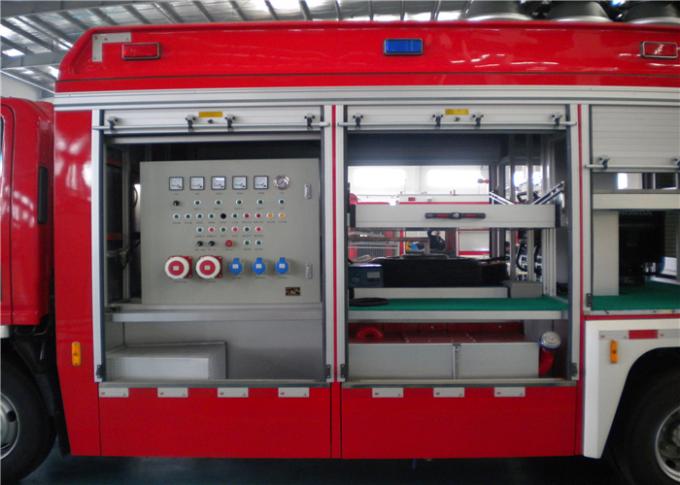

Main lighting system
50kw electric generator, 2x8kw main lamp, pneumatic lifting poker, holder, controller, air compressor, power distribution system, auxiliary lighting.
Lifting lighting control cabinet3
| Model | FI/CB/16.0MH |
| Intelligent electric meters | Voltage, current, frequency |
| Aviation waterproof plug | 1x Electric supply input 2x electric generator Power: 6KW |
| Panel intelligent control | 2x Main light open 1x pitching |
| Panel emergency control | |
| Internally installed | Wireless receiver |
Holder
| Model | TT31626 |
| Rotation angle | 360° |
| Pitching angle | 300° |
| Load | 150kg |
Auxiliary lighting
2x halogen lamp
Power: 2×1500 W
Voltage: 220VAC
Air compressor
Model: QW-400
Type: maintenance-free mute oilless air compressor
Power: 2.5 kW
Flow: 260 L/min
Air supply manage: oil-water separator pressure regulating valve
FAQ:
1. Q:Are you a factory or a trade company?
A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.
2. Q:Where is your factory located?
A:We are located in Shanghai Province,China.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
Any other questions, please do not hesitate to contact with us.
