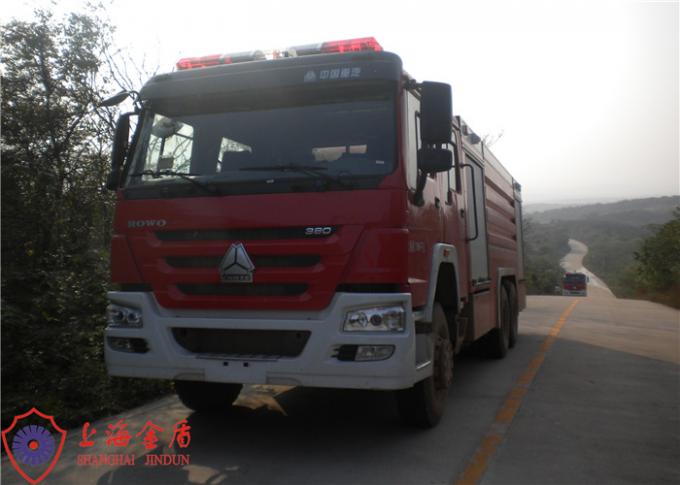

?Vehicle
| Dimension (L×W×H) | 10180×2500×3650mm |
| Gross weight | 33320kg |
| Complete vehicle shipping mass | 15270kg |
| Seat (inc. driver) | 6 |
| Max. power | 276kw |
Chassis
| Manufacturer | Sinotruk HOWO |
| Model | ZZ5347V4647D5 |
| Drive type | 6×4 |
| Cab | Flattop metal forward type |
| Wheelbase | 4600+1350mm |
| Max. speed | 85km/h |
| Min. turning diameter | ≥22m |
| Approach angle | 16° |
| Departure angle | 12° |
| Engine type | Inline six-cylinder, pressure combustion, water inter-cooling, direct injection diesel engine |
| Model | D10.38-40 |
| Max. power | 276kw |
| Max. torque | 1560N•m |
| Emission standard | China IV |
| Clutch | Pull, dry |
| Gearbox model | Manual, 10 forward gear |
Cab
| Structure | Double row, four-door, lengthen cab |
| Seat | 2+4 |
| Equipment | Except the original equipments. There is a storage box with cover under the seat, embedded 4x9L air breathing apparatus fixed mount in the seats |
Electrical system
The main lights in the cab at the top of the long row of lights, configure the 100W alarm control system; a strobe lights installed on both sides and the middle of each compartment (two red and blue)
Painting
Red paint: cab, body (shutter doors, except decorative strip)
White: front and rear bumpers
Onboard document
- Vehicle operation and maintenance manual
- Chassis operating manual
- Chassis operation and maintenance manual
- Chassis quality warranty card
- Chassis certificate, vehicle certificate, 3C logo
- Engine code copy
- Chassis code copy
- Onboard equipment list
- Follow-up service card
- Hand-over list
