Chemical Accidents Rescue Salvage Fire Truck Gross Weight 14900kg Fire Equipment Truck , Max Speed 100KM/H
Vehicle
| Dimension (L×W×H) | 8655×2500×3500mm |
| Gross weight | 13066kg |
| Complete vehicle shipping mass | 12616kg |
| Rescue equipment quantity | 100pcs |
| Seat (inc. driver) | 2+4 |
Chassis
| Manufacturer | Scania |
| Drive type | 4×2 |
| Cab | Crew cab |
| Wheelbase | 4425mm |
| Max. total mass | 18000kg |
| Max. speed | 96km/h |
| Min. turning diameter | <15.6m |
| Engine type | In-line six-cylinder, inter-cooling, high pressure common rail, electronic control |
| Model | D0836LFL30 |
| Max. power | 213kw |
| Max. torque | 1150N.M |
| Emission standard | China IV |
| Gearbox model | ZF 9S-1310 OD Manual |
Equipment tank
| Manufacturer | SHANGHAI JINDUN |
| Material | Q235A high quality steel combine aluminium alloy sections |
| Structure | Welding, lap structure, skin, floor, interior panels use rust-proof aluminum plane, pedal tread surface, car roof using aluminum patterns. |
| Equipment compartment door | the light quality aluminum alloy, with shutter doors, lightweight and reliable. |
| Internal structure | the inner frame for the introduction of aluminum lap technology, can maximize space utilization and variability within the equipment, users can request allocation of various sliding bracket, carriage, rotating frame, and high strength plastic storage box and so on, the structure from the space utilization, aesthetic appearance, ease of handling equipment have reached the international advanced level. |
Traction system
| Model | M12000 |
| Manufacturer | Warn |
| Winch cable max. length | ≥38m |
| Voltage | 24V |
| Winch cable diameter | 9.5m |
| Winch max. pull | 5440kg |
| Position | Front bumper |
Equipment layout principles
1, According to combat programming and combat development design equipment integration.
2, According to human body engineering principle design all kinds of equipment frames.
3, According to using logic and frequency of use place equipment.
4, 1-2 action can take any equipment standing on the ground or pedal.
5, Fixed all equipment with rust-proof, vibration-proof, anti-drop, scratch-proof special clamp.

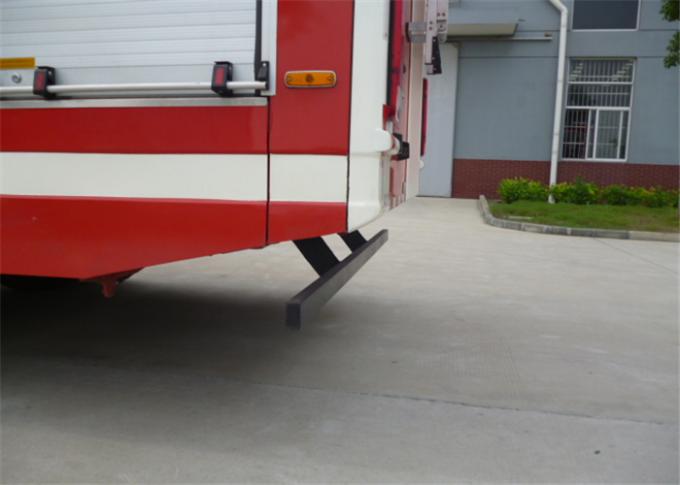

Pedal plate
Location: At the bottom of roller shutter door.
Material: Steel frame covered by aluminum alloy checkered plate.
Structure: adopt the gas springs plus shutter fasten, safe and reliable, each petal plate bearing ≥150Kg.
