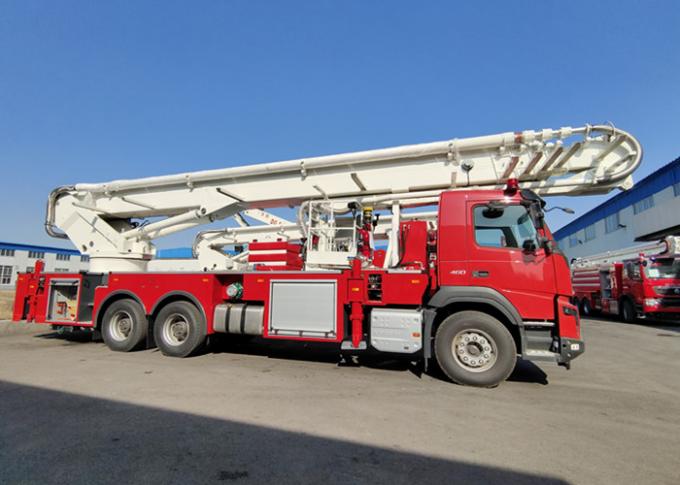

Shanghai Jindun H Style Outrigger Multifunction Aerial Platform Fire Truck (110A Generator)
Product Parameter:
| Dimension:(L×W×H) | 13600×2500×3900mm | ||||||
| Full mass | 42600kg | ||||||
| Max running | ≥85km/h | ||||||
| outrigger | structure | H style | |||||
| longitudinal | 8690mm | ||||||
| transverse | 7035mm | ||||||
| Outrigger leveling | Auto leveling+ manual leveling | ||||||
| Working cage load | 500kg | ||||||
| Max. Working height | 70m | ||||||
| Max. Working radius | 24m | ||||||
| Boom structure | 6down telescopic boom+2 up telescopic boom | ||||||
| Boom action angle | Down boom 0°——88° Down and up boom 0°——170° | ||||||
| Rotation range | 360°full rotation | ||||||
| Outrigger extending time | ≤50s | ||||||
| Time of Boom raise up at rate height and rotation with 90 ° | ≤310s | ||||||
| Water system | |||||||
| pump | American WATEROUS CX centrifugal fire pump flow:100 L/S @ 1.0 Mpa80 L/S @ 1.60Mpa Inlet flange:DN150,outlet flange:DN100 | ||||||
| Fire monitor | American Elkhart:Scorpion RF 8294-EXM+SM-1250E,water/foam use electronic control monitor. Flow adjustment 1150——4800L/min??working pressure 0.55MPa. reach(water)≥55m. reach(foam)≥50m.(the reach will be different depending on water flow) Swivel angle ±45 degree?? up angle 90 degree??depression angle 35degree. ≥100 m wireless control . | ||||||
| Foam head | Equip with foam monitor head | ||||||
| Water way control | Water way control mode:pneumatic control The position is left side of vehicle | ||||||
Fire plumbing | Down part:stainless pipe + aluminum pipe | ||||||
Upper part: telescopic water pipe: aluminum alloy seamless tube Folding water pipe: aluminum alloy seamless tube Soft connection pipe: rubber soft tube | |||||||
Water coupling | coupling | spec | Valve | ||||
| External Water Supply | 2XDN80 | Hose coupling with cover lid | |||||
| Upper Monitor inlet | 1XDN125 | Pneumatic butterfly valve | |||||
| Water supply from end of vehicle | 2XDN80 | Manual ball valve with cover | |||||
| Coupling type:quick coupling or slow coupling option | |||||||
| electric | turntable operative control, with comfortable chair | ||||||
| Vehicle control mode:touch screen interface , computer control | |||||||
2 round siren light on top of cab siren alarm in cab camera reverse monitor vehicle radio interface preservation | |||||||
Automatic charger plug off wind meter in working cage overload warning in working platform video camera and disk video recording | |||||||
| Body frame | Step well ladder for climbing:each one for left and right side | ||||||
| Body structure:aluminum alloy welding structure | |||||||
| Body coaming:sticking with aluminum alloy plate | |||||||
| Body platform/equipment box pump house top: oxidation antislipaluminum alloy plate | |||||||
| Equipment box/pump house/tool box:Aluminum roller shutter | |||||||
Company Profile:
Jindun as a member of China Fire Protection Association, was certified by TUV System, NFPA and CCCF. By excellent products and innovative technology, we are engaged in developing a “safe, livable and rich society.”
The company specializes in R & D and production of ladder cars, high pressure jet trucks, rail dual purpose fire engines, remote water supply vehicles, climbing platform vehicles, water tank foam cars, AT cars, emergency rescue vehicles, marine fire engines, anti-chemical detection vehicles, anti-chemical and decontamination vehicles, CAFS fire engines, airport fire engines, unmanned fire-fighting tankers, lighting fire engines, gas trucks, etc., and according to the changes of fire market and customer demand, Continue to develop high-end special fire engines and multifunctional and intelligent fire-fighting equipment.
