Single Cab Aerial Working Platform Fire Truck 22.3m Turning Diameter 6 Seats
The most advanced hydraulic pilot and electro-hydraulic proportional control system are adopted to make the arm frame move more stable and more safe and reliable.
1. The use of variable displacement pump ensures the stability of hydraulic system. In the operation of boom, the hydraulic oil pump can automatically determine the oil supply quantity according to the amount of oil required by the boom operation. In this way, the oil temperature of hydraulic system is not only prevented, but also the stability of the boom operation is guaranteed.
2. The unique computer control system makes the arm frame easy to operate. The vehicle adopts TFT touch 10.4 inch color LCD Chinese display, which can not only display the working curve of the boom, but also display the working height, amplitude changing angle, working radius and other relevant data. And can be monitored by touch screen.
3, the rational use of high-power pumps, water cannons and water tanks and foam tanks makes the vehicle have the function of high-power foam fire trucks.

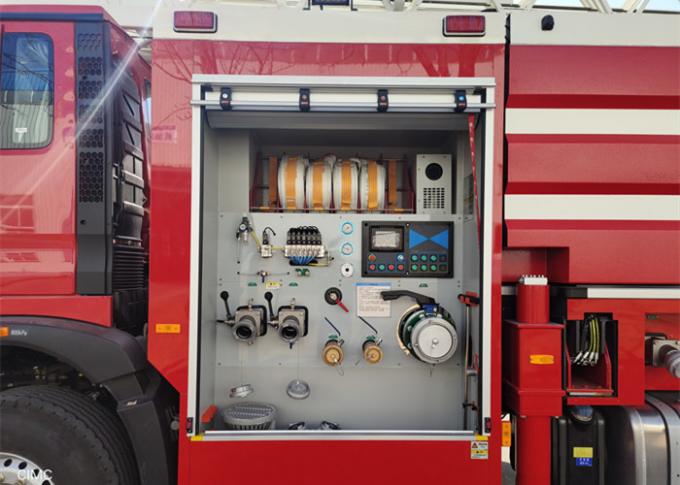

| Pipeline | Water outlet | 4×DN80 ball value coupling | |
| Suction inlet | 1×DN150 hermaphroditic coupling with lid cover(left side) | ||
| Water supply | 2×DN80 ball value coupling | ||
| Liquid inlet | 1×DN50 manual ball valve(left side) | ||
| Water outlet out of the platform | 1×DN65 ball value coupling(in front of platform) | ||
| Coupling type: quick coupling | |||
Fire Pump | Manufacturer | American Hale | |
| Model | RSD (Rated flow100L/S) | ||
| Flow | 6000L/min ,4200L/min | ||
| Pressure | 1.0MPa , 1.7MPa | ||
| Water diversion | Electric vacuum pump | ||
Fire monitor | Model | TFT hurricane | |
| Manufacturer | US TFT | ||
| Flow | 4800L/min | ||
| Pressure | ≤0.6MPa | ||
| Shooting range | water≥70m ,foam≥65m | ||
| Swivel/up/depression angle | -45°?? +90° | ||
| Level angle | 0??348° | ||
| Inside nominal diameter | 100mm | ||
| Item | Manufacturer | |
| 1 | Chassis | Mercedes Benz |
| 2 | Fire pump | HALE RSD |
| 3 | Fire monitor | US TFT |
| 4 | Boom | Shanghai Jindun |
| 5 | Slewing Bearing | Ma On Shan FANG YUAN |
| 6 | Hydraulic oil-pump | Rexroth |
| 7 | Multiple valve1 | Danfoss |
| 8 | Multiple valve2 | GELTCH |
| 9 | Balance valve | SUN |
| 10 | Operating handle | P&G |
| 11 | Controller | IFM |
| 12 | Display | IFM |
| 13 | Sense switch | Shanghai Balutu |
| 14 | Ultrasonic sensor | Turck |
FAQ:
1. Q:Are you a factory or a trade company?
A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.
2. Q:Where is your factory located?
A:We are located in Shanghai Province,China.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
Any other questions, please do not hesitate to contact with us.
