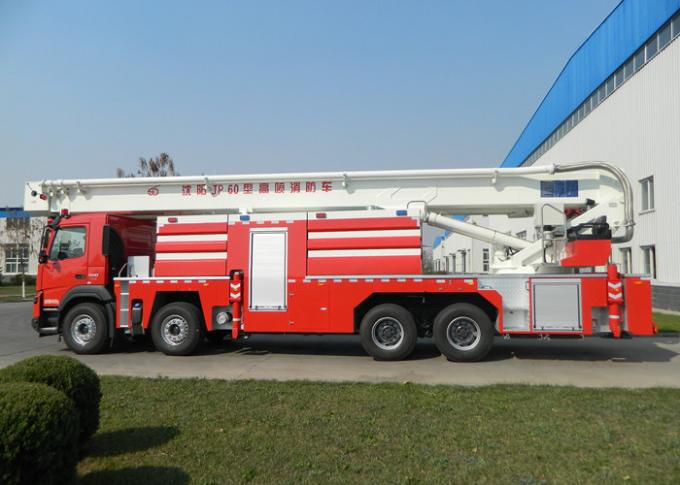

60 Meters water tower fire fighting truck by 8×4 Sinotruk Howo or Volvo chassis
Water tower fire fighting vehicle is suitable for large fire disaster fighting including oil drilling, high rise construction, oil chemistry plant, large warehouse and public place.
1. Multi function and variable capability Centralized handling. All operating handles, switches and buttons are integrated on one console; One person can complete all the operation on one console. Remote control. 40m wired remote control systems is used to control the action of truck. It is quite suitable for oil drilling, oil chemistry plant and other dangerous places fire-extinction. Automatic control system. The vehicle uses the excellent hydraulic and electronic components. And it’s assembled with contracted lines layout that is more convenient for maintenance, more safety and reliably for operation.
2. Powerful fire-extinction capacity The vehicle equipped the most advanced water/foam pump and fire monitor. The range is over 80 meters at pressure rated.
Quick Details:
| Vehicle name | JP60 water tower fire fighting truck | ||||||
| chassis | Chassis name | China Sinotruk Howo/Volvo | |||||
| Driving | 8×4 | ||||||
| Wheelbase | 1950+4600+1400mm | ||||||
| engine | MC13.54-50,Euro V emission standard, turbo , diesel engine in line. | ||||||
| Engine power | 540hp/1900rpm | ||||||
| Engine capacity | 12.4 L | ||||||
| Fuel tank | 350 L | ||||||
| Battery box | 2000W generator,2X12V/165AH battery | ||||||
| Cab | M-cab,1+1 seating | ||||||
CNHTC t5g-d type cab, flat end full metal forward roll, double door single row seat, four-point floating coil spring suspension, manual hydraulic support forward roll;1 driver and 2 passengers, 1+1+1 seats, deluxe cab seats; Cruise control, electric doors and Windows, central lock, heating/ventilation system, air conditioning system, other Settings standard.
| |||||||
| dimension:(L×W×H) | 13160×2500×3950mm | ||||||
| Gross weight | 42600kg | ||||||
| Max. running | ≥85km/h | ||||||
| outtrigger | structure | H style | |||||
| Outrigger leveling | manual leveling | ||||||
| Max. working height | 60m | ||||||
| Max. working radius | 31m | ||||||
| Boom structure | 3 section telescopic boom(down)+ 3 section telescopic boom (up) | ||||||
| Boom action angle | Down Telescopic boom 0°——88° Up Telescopic boom and down telescopic boom 0°——164° | ||||||
| Rotation range | 360°infinite rotation | ||||||
| Outrigger extending time | ≤40s | ||||||
| Boom raised to rated height and rotation 90° | ≤270s | ||||||
| Fire water way system | |||||||
| tank | material:stainless steel | foam:5000 liter | |||||
| thick:bottom 4mm,others 3mm | |||||||
| transverse and longitudinal baffles in tank | |||||||
| Water leak pipe with cover:DN125 | |||||||
| vent valve for foam tank | |||||||
| electric liquid gauge for water and foam tank | |||||||
| Flexible mounting between tank and subframe | |||||||
| Anti-slip stainless steel plate on top of tank | |||||||
| rustproof painting for internal surface of tank | |||||||
Each water and foam tank has 1 man-hole, internal diameterφ440 Quick lock/on, auto pressure release during more than 2 kg, green lid for water tank, yellow lid for foam tank | |||||||
| pump | American Waterous company, single stage centrifugal pump flow:100 L/S @ 1.0 Mpa 70 L/S @ 1.4 Mpa intake flange:DN200,outtake flange:DN150 | ||||||
| Vacuum pump | ESP-24V electric slip sheet vacuum pump 2 pieces( 24V) Vacuum capacity≥85kPa??suction depth≥??m??water drawing time less than50s. | ||||||
| mixer | Manual 95 model foam proportional mixer, the ratio is 1-10% | ||||||
Fire monitor | American AKRON , MONITOR HEAD 5177 , water and foam use telecontrol monitor.Monitor body made by CIMC. Water flow :950~4800L/min??pressure 0.55MPa. Water reach≥70m,foam reach≥60m. Swivel angle±45 degree?? elevation angle 90 degree??depression angle 45 degree. ≥100m wireless control | ||||||

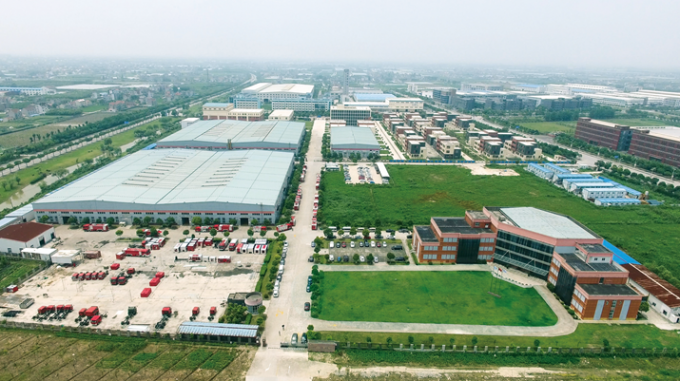

Company Profile:
Jindun as a member of China Fire Protection Association, was certified by TUV System, NFPA and CCCF. By excellent products and innovative technology, we are engaged in developing a “safe, livable and rich society.
The company specializes in R & D and production of ladder cars, high pressure jet trucks, rail dual purpose fire engines, remote water supply vehicles, climbing platform vehicles, water tank foam cars, AT cars, emergency rescue vehicles, marine fire engines, anti-chemical detection vehicles, anti-chemical and decontamination vehicles, CAFS fire engines, airport fire engines, unmanned fire-fighting tankers, lighting fire engines, gas trucks, etc., and according to the changes of fire market and customer demand, Continue to develop high-end special fire engines and multifunctional and intelligent fire-fighting equipment.
