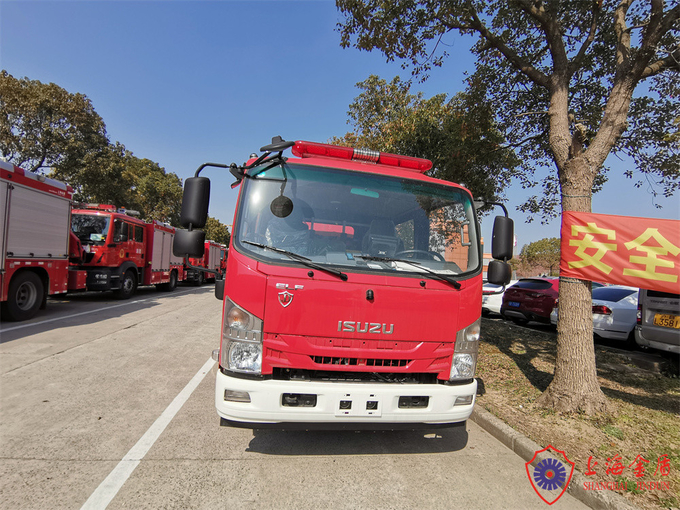

PM35/B ISUZU Foam Fire Truck with HALE AP32 Pump
The PM35/B is a foam fire truck on an ISUZU QL11009KARY chassis. It is fitted with a USA HALE AP32 fire pump and an AKRON 3430 monitor. Public security brigades in large and medium cities use it, along with petrochemical companies and airports. It is the foam counterpart of the light water tanker on the same chassis. The stainless steel tank holds 2500 kg of water and 1000 kg of foam. The pump moves 32 L/s at 1.0 MPa.
The chassis is 4×2 with a 3815 mm wheelbase and a double cabin seating 1+1+3. A 139 kW, 189 hp engine drives through a monolithic dry clutch. Overall dimensions are 6870x2240x3040 mm. Full load permissible weight is 10000 kg and the vehicle total weight is 6125 kg. The 2240 mm width suits yard work at a terminal.
The pump is a single stage centrifugal unit from HALE, matched to the roof monitor. Piping and locker layout follow the water version of the same chassis. Pump room, tank and equipment compartments are kept separate. The builder lists that as easy to operate and maintain. The tank is stainless steel rather than coated carbon steel.
Full specifications
| Whole vehicle | ~ |
|---|---|
| Dimensions | Full load permissible weight |
| X2240X3040 mm | 10000 kg |
| Vehicle total weight | Fire-extinguishing agents |
| kg | water+foam:3500 kg |
| Max. Power (kw/hp) | Manufacturer |
| kw/189hp | ISUZU chassis |
| Drive type | Cab |
| x2 | double cabin (1+1+3) |
| Wheelbase | Clutch |
| mm | Monolithic, dry |
| Fire pump | ~ |
| Manufacturer | Model |
| USA HALE Company | AP32 |
| Flow | Pressure |
| L/s | 1.0MPa |
| Tank | ~ |
| Capacity | Material |
| Water: 2500kg, foam:1000kg | high quality stainless steel |
Where it fits
Built for city brigades, oil terminals and airports. These crews need a stainless steel foam tanker with a HALE pump and monitor for hydrocarbon spills, tank fires and standing patrols.
