PM80 HOWO Foam Fire Truck with 19800 kg Gross Weight

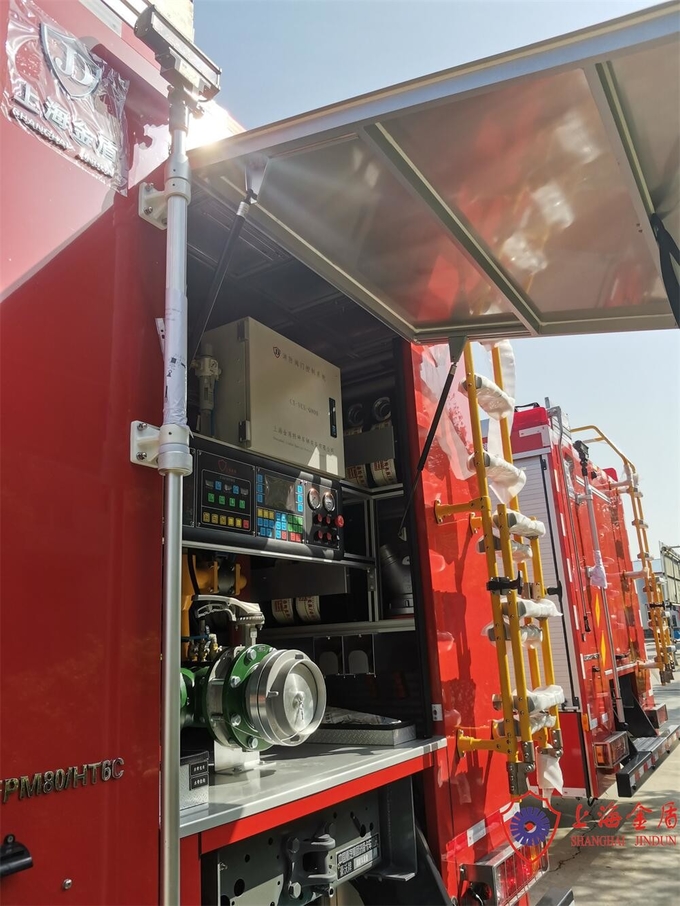

The PM80 is a water foam fire truck modified from a SINOTRUK HOWO second class chassis. It is laid out for petrochemical plants, oil depots, oil docks, airports and municipal brigades. Equipment compartment, liquid tank and pump room are split into separate structures. The crew can therefore work the pump while others draw hose from the lockers.
Gross weight is 19800 kg against a 11600 kg shipping mass. The wheelbase is 4600 mm and drive is 4×2. A 206 kW engine is listed as the D10.28-40, an in line six cylinder diesel. It is water cooled, inter-cooled and direct injection, and it meets China IV emission limits. Torque reaches 1190 N.m through a pull type diaphragm clutch and a ten forward gear manual box.
The cab is a four door lengthened unit seating 2+4. Maximum speed is 100 km/h and the minimum turning diameter is 20 m or less. Approach and departure angles are 16 and 14 degrees. The electrical system carries a 100 W alarm control with red and blue strobes on each compartment. LED side markers run along both sides of the body.
Full specifications
| Dimension (LxWxH) | 8475x2500x3400 (mm) |
|---|---|
| Gross weight | 19800 (kg) |
| Complete vehicle shipping mass | 11600 (kg) |
| Seat (inc. driver) | 2+4 |
| Max. power | 206kw |
| Manufacturer | Sinotruk HOWO |
| Model | ZZ5207M4617D5 |
| Drive type | 4×2 |
| Cab | Four door lengthen cab |
| Wheelbase | 4600mm |
| Max. speed | 100km/h |
| Min. turning diameter | ≤20m |
| Approach angle | 16° |
| Departure angle | 14° |
| Engine type | Pressure combustion, In-line six-cylinder, water cooling, inter-cooling, direct injection diesel engine |
| Max. torque | 1190N.M |
| Emission standard | China IV |
| Clutch | pull type diaphragm |
| Gearbox | Manual, 10 forward gear |
Where it fits
Aimed at petrochemical terminals, oil depots and airport brigades. A 19800 kg foam truck that runs at 100 km/h can then supply foam for an extended attack with a full load on board.
